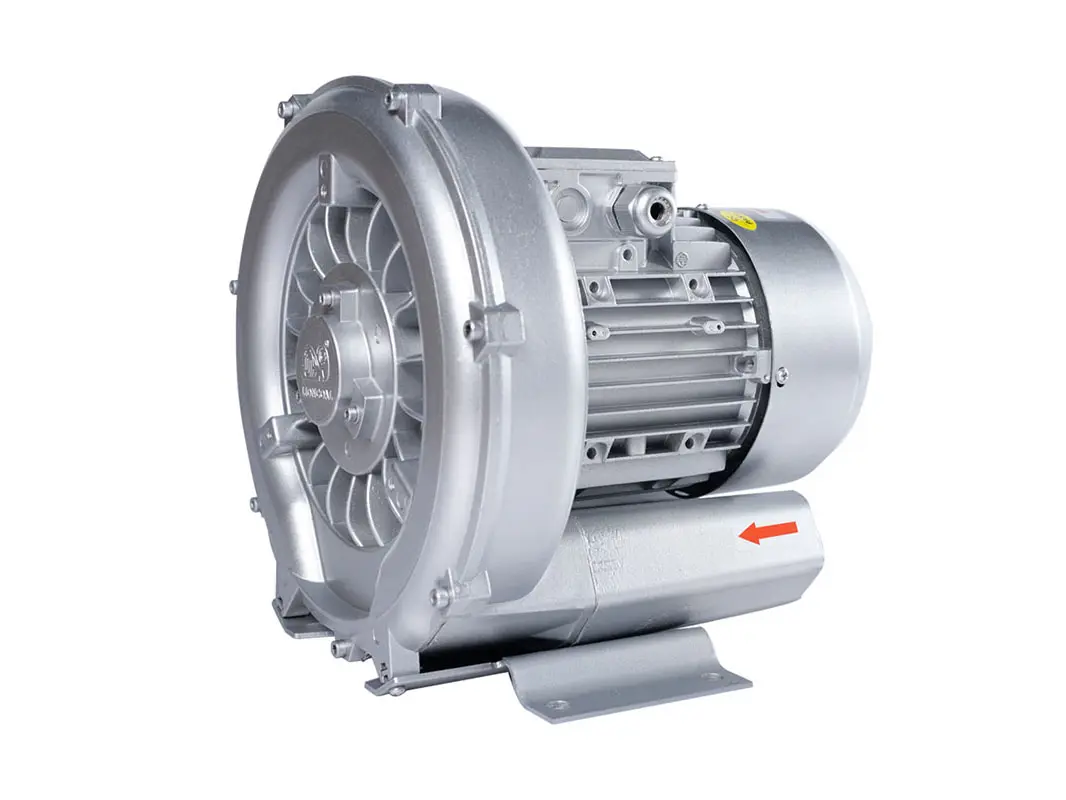

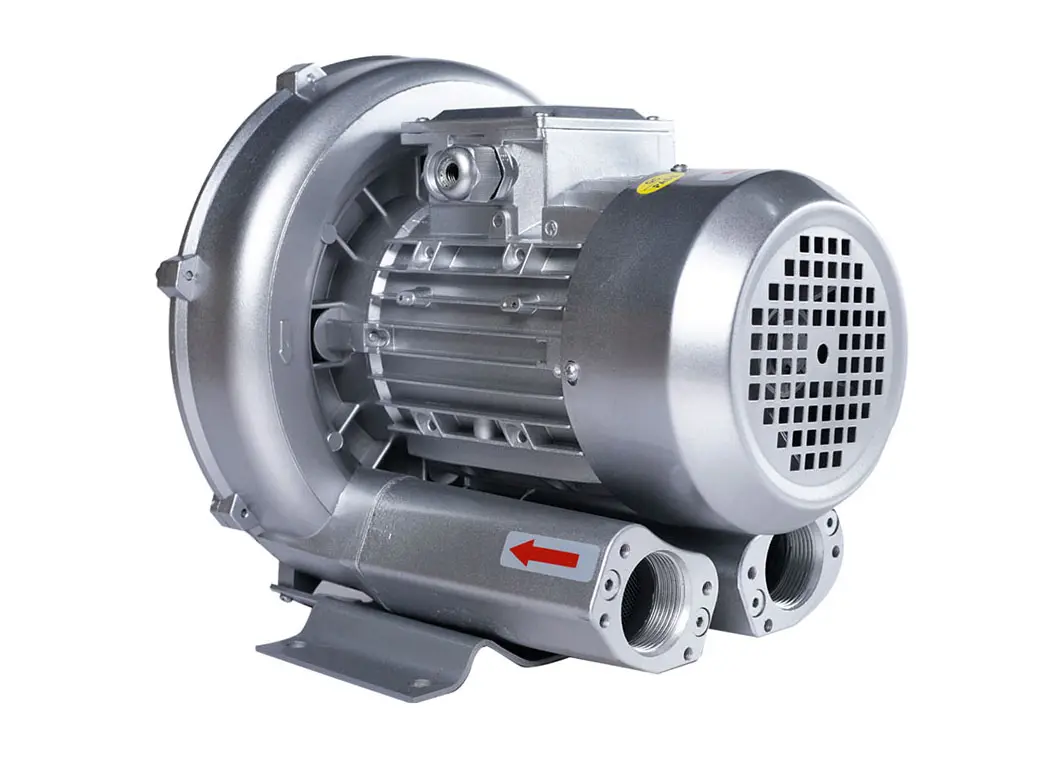

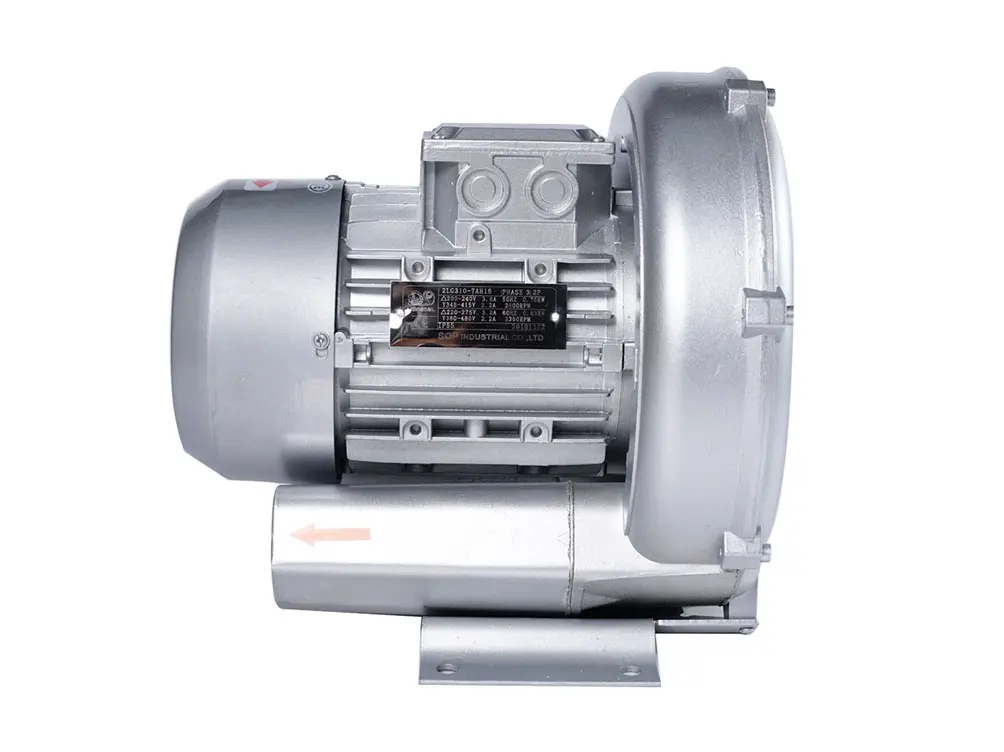

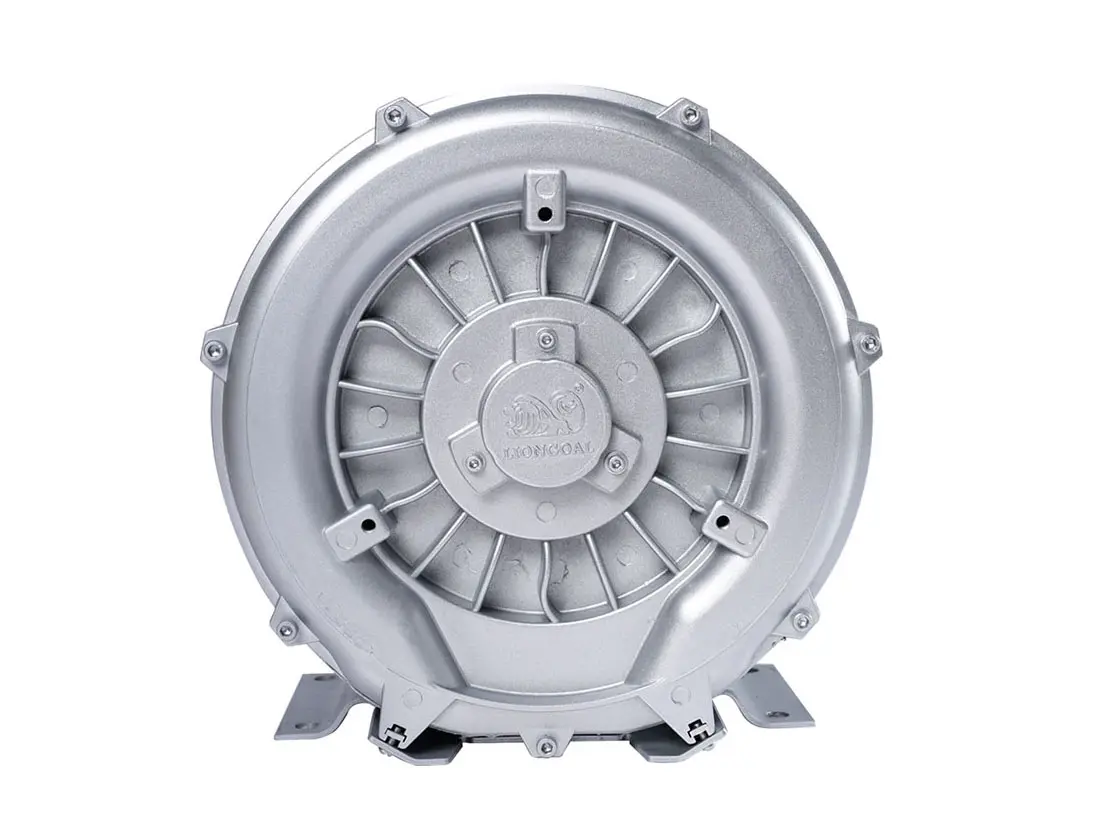

2LG310 Three Phase 380V Regenerative Blower for Dust Collector

It consist of impellers driven by an electric motor. The impellers have blades around their perimeter and rotate inside the housing. Air enters the compartments through an inlet port. As the moving blades come into contact with the air, centrifugal forces push the air outward toward the housing. The pressurized air then reaches the base of the housing. The impellers rotate several times, repeating this action, and finally, the compressed air is discharged from an exhaust outlet.

    Contact us

    Product introduction

    A regenerative blower, also referred to as a side channel blower, is an air - moving device that generates both pressure and vacuum using a non - positive displacement mechanism. It’s widely used in various applications such as dust collector, sewage aeration, vacuum lifting, vacuum packaging, pneumatic conveying and so on. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer 2 years quality assurance for our blowers. We have established partnerships with 5000+ customers from all over the world.

    ring blower-11

    Features

    1. Two-year warranty, no need for daily maintenance

    2. Long term durability, 24-hour continuous work

    3. Balanced design of dual bearings

    4. Aluminum alloy shell, 100% copper coil of motor

    5. Quiet operation, low noise

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Easy installation

    Parameters

    Product Name

    Regenerative Blower

    Model

    2LG310 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    0.55/0.63/0.7/0.83Kw

    Voltage

    380V

    Max Airflow

    110/140m³/h

    Max Vacuum

    -110/-150mbar

    Max Compressor

    120/150/140mbar

    Caliber

    G1-1/4inch

    Power Source

    Electric

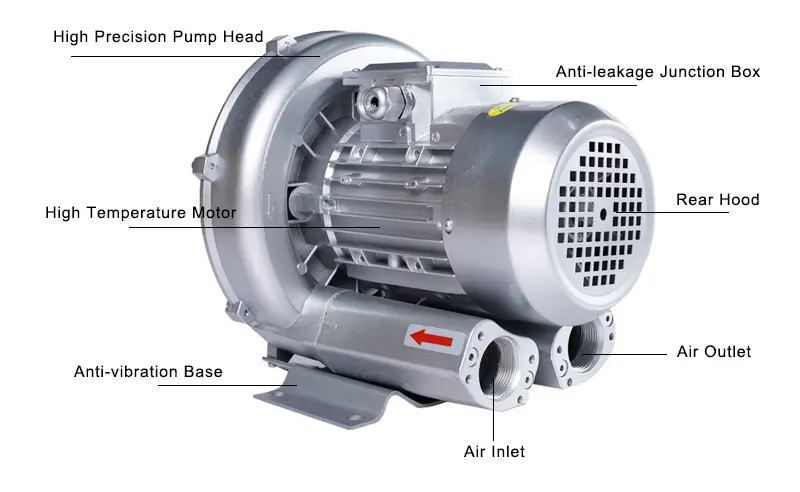

    Details

    Regenerative blower-6

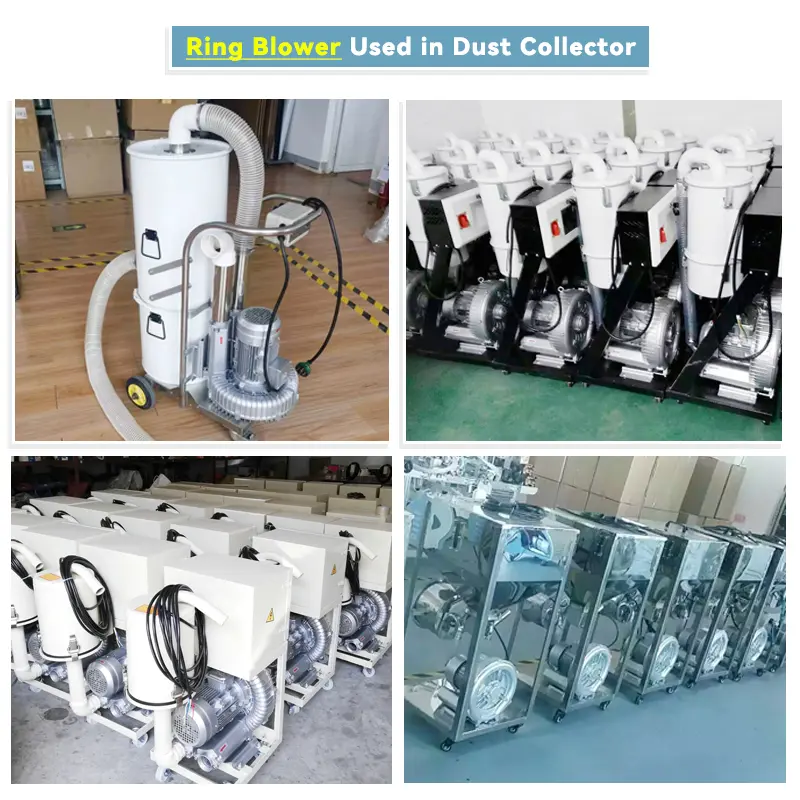

    Application

    Regenerative blower can be used in dust collector, sewage aeration, vacuum lifting, vacuum packaging, pneumatic conveying and so on.

    Regenerative blower-7

    Customers Show

    Regenerative blower-8
    ring blower-8
    ring blower-9
    ring blower-10
