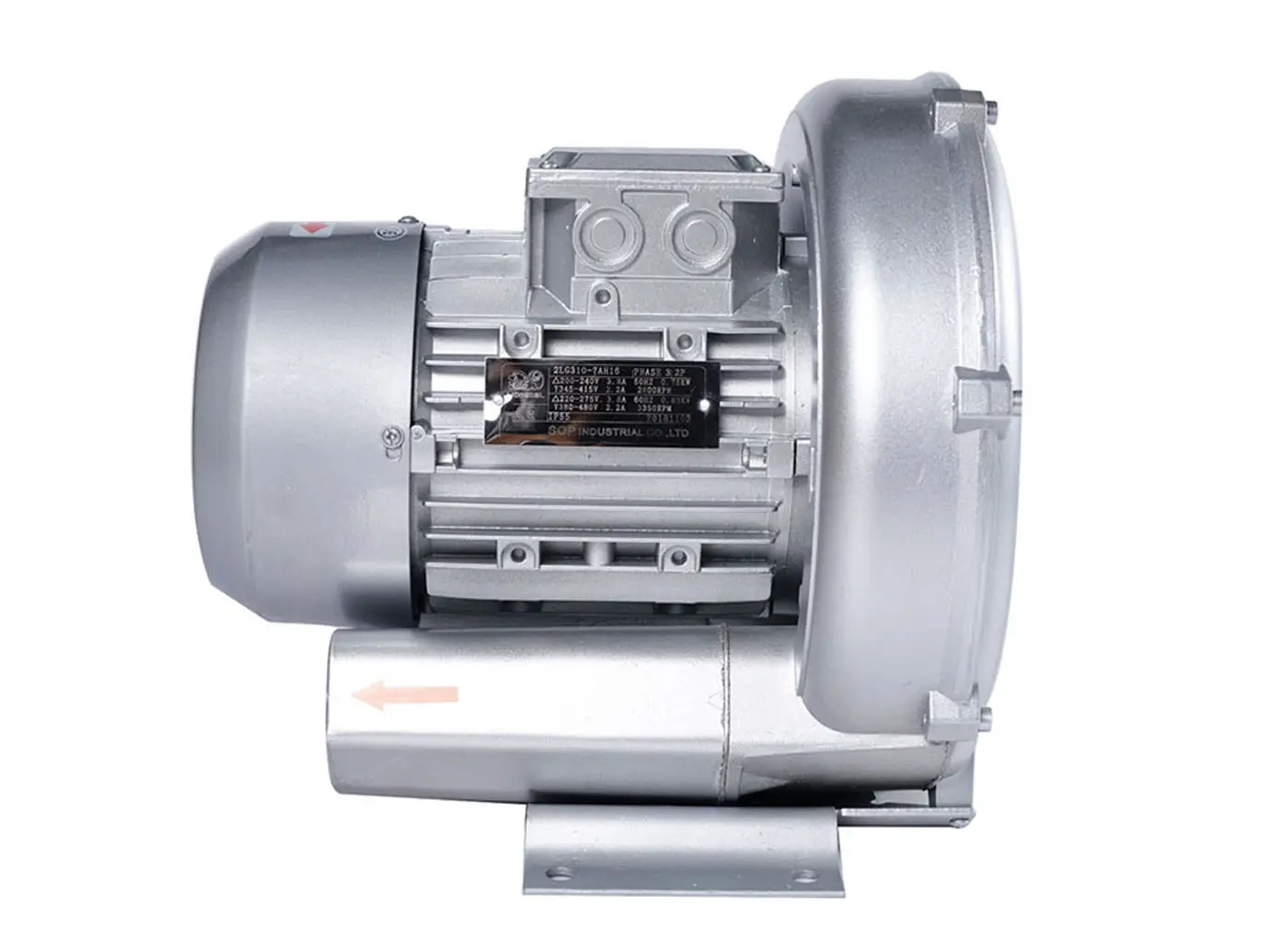

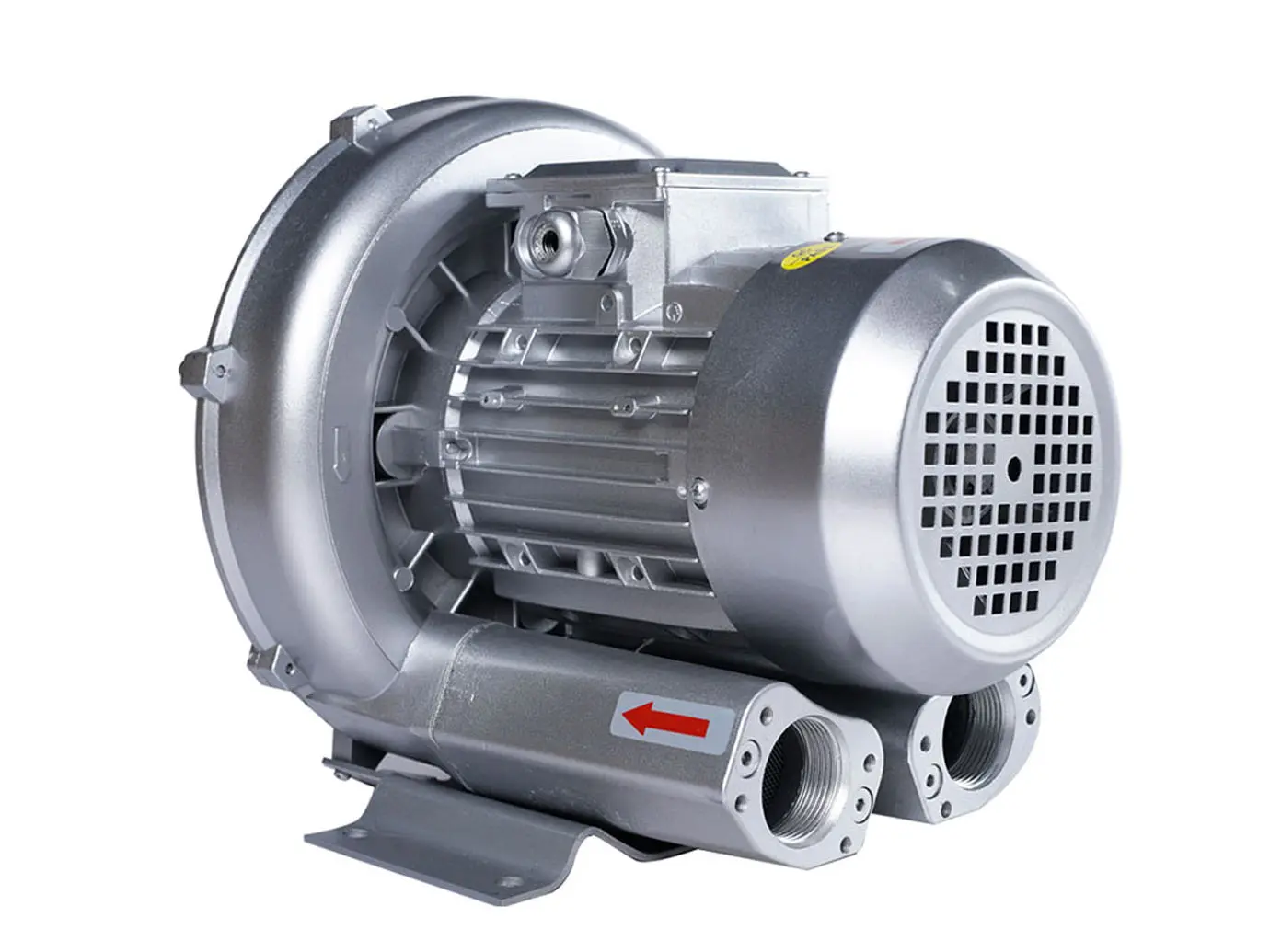

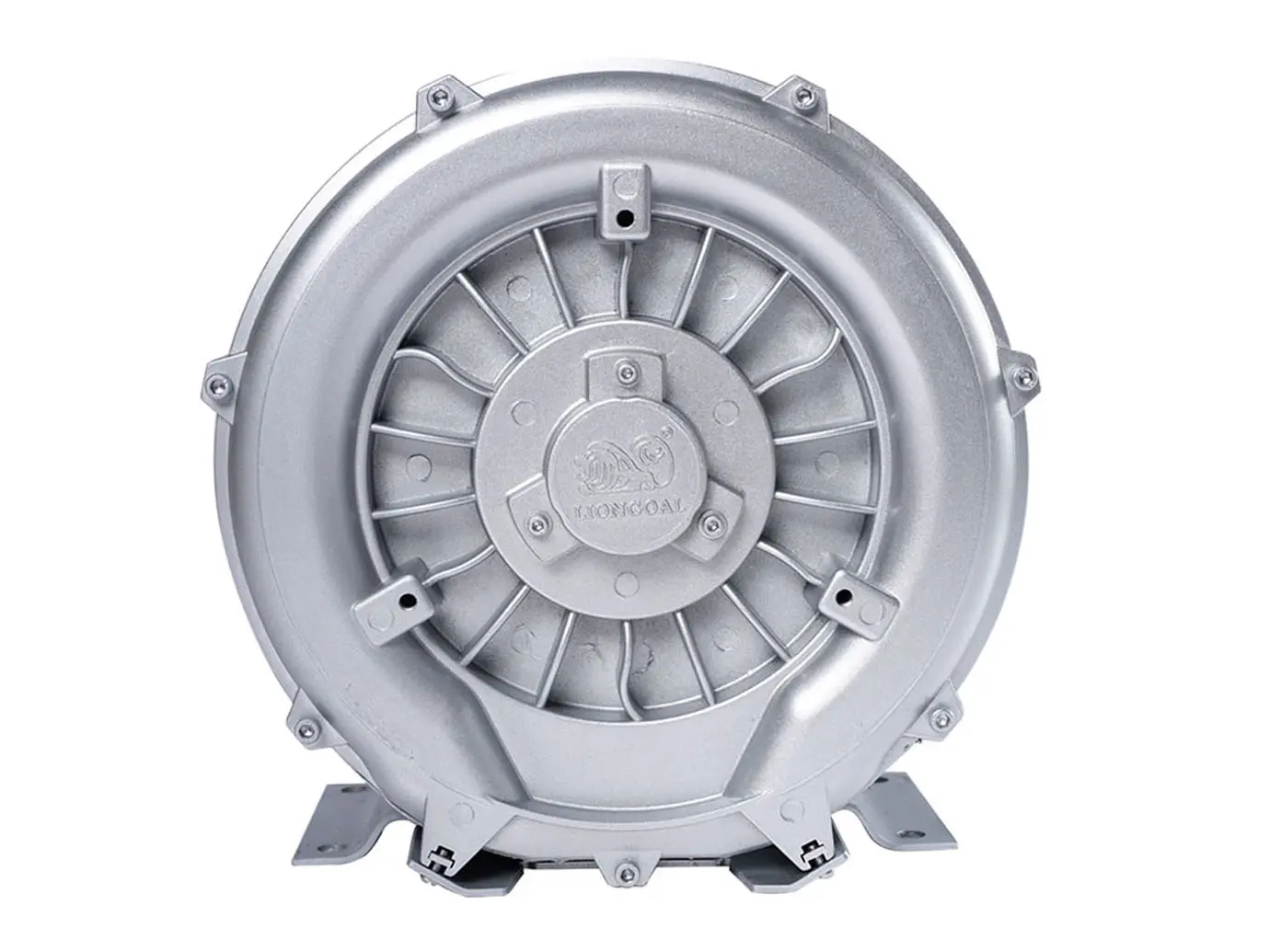

2LG410 380V Three Phase Single Stage Ring Blower for Spa Pool

It consist of impellers driven by an electric motor. The impellers have blades around their perimeter and rotate inside the housing. Air enters the compartments through an inlet port. As the moving blades come into contact with the air, centrifugal forces push the air outward toward the housing. The pressurized air then reaches the base of the housing. The impellers rotate several times, repeating this action, and finally, the compressed air is discharged from an exhaust outlet.

    Contact us

    Product introduction

    While multi stage blowers generate higher pressure, ‌single stage models excel in efficiency and simplicity‌ when moderate pressure is sufficient: higher flow rates due to less airflow restriction, lower initial cost and maintenance needs, simpler control systems and easier integration, good for variable air demand when paired with inlet guide vanes or frequency inverters. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer 2 years quality assurance for our blowers. We have established partnerships with 5000+ customers from all over the world.

    ring blower-11

    Features

    1. Two-year warranty, no need for daily maintenance

    2. Long term durability, 24-hour continuous work

    3. Balanced design of dual bearings

    4. Aluminum alloy shell, 100% copper coil of motor

    5. Quiet operation, low noise

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Easy installation

    Parameters

    Product Name

    Single Stage Ring Blower

    Model

    2LG410 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    0.7-1.5Kw

    Voltage

    380V

    Max Airflow

    145/175m³/h

    Max Vacuum

    -120/-130/-160/-170/-210mbar

    Max Compressor

    120/130/160/200/220mbar

    Caliber

    G1-1/2inch

    Power Source

    Electric

    Details

    Regenerative blower-6

    Application

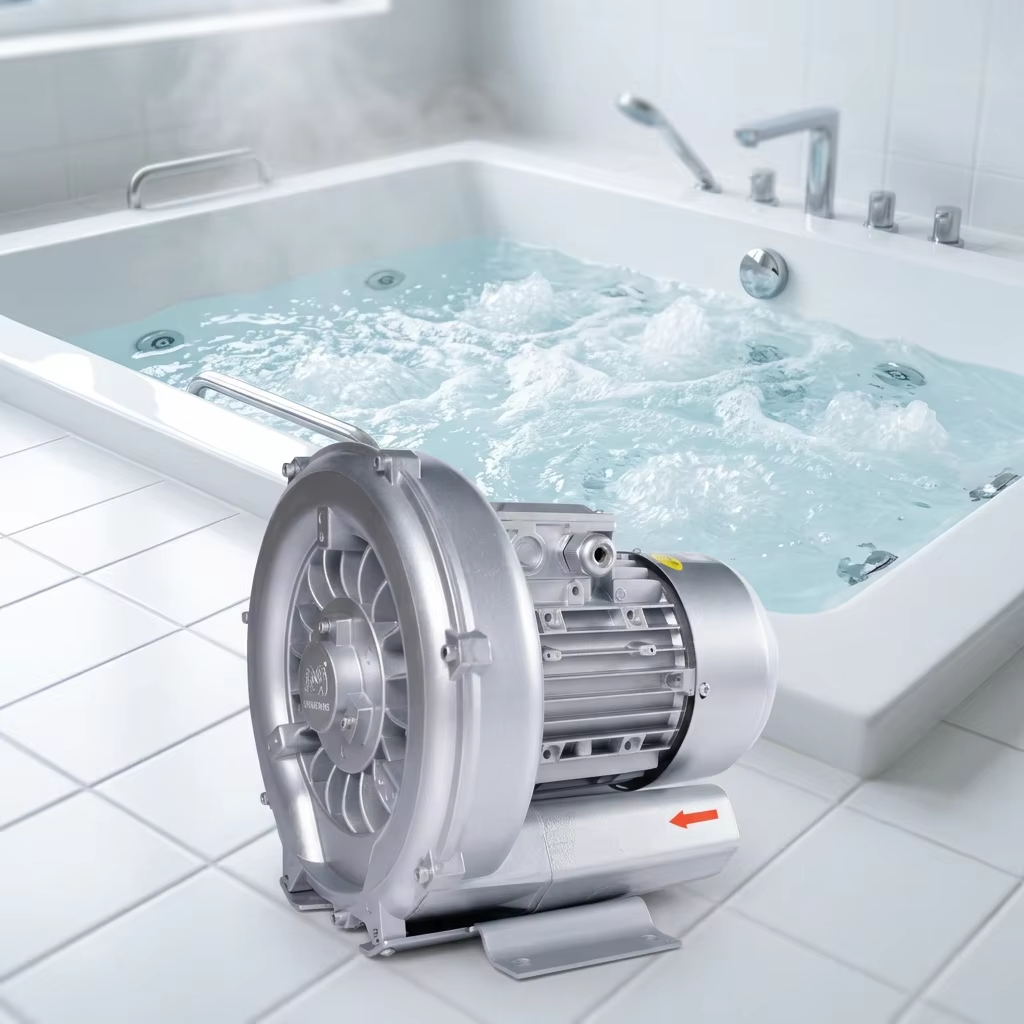

    Single Stage Ring Blower plays a key role in packaging and printing machinery by delivering stable vacuum for sheet feeding, label application, and bag forming, ensures hygiene-compliant air supply in food and beverage processing and pharmaceutical production, supports vacuum clamping in woodworking, generates therapeutic bubbles in SPA and hydrotherapy systems, assists in fiber conveying in textile machinery, powers central vacuum and industrial cleaning networks, and provides reliable suction for dental and medical clinic systems.

    Single Stage Ring Blower-7

    Customers Show

    Regenerative blower-8
    ring blower-8
    ring blower-9
    ring blower-10
