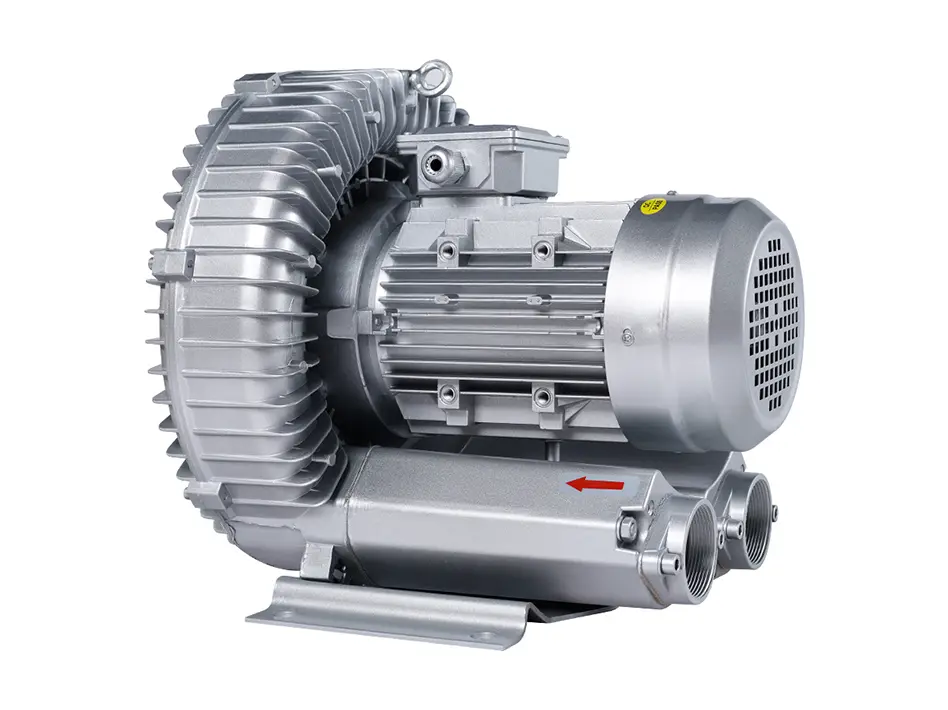

High Pressure Ring Blower-1.jpg

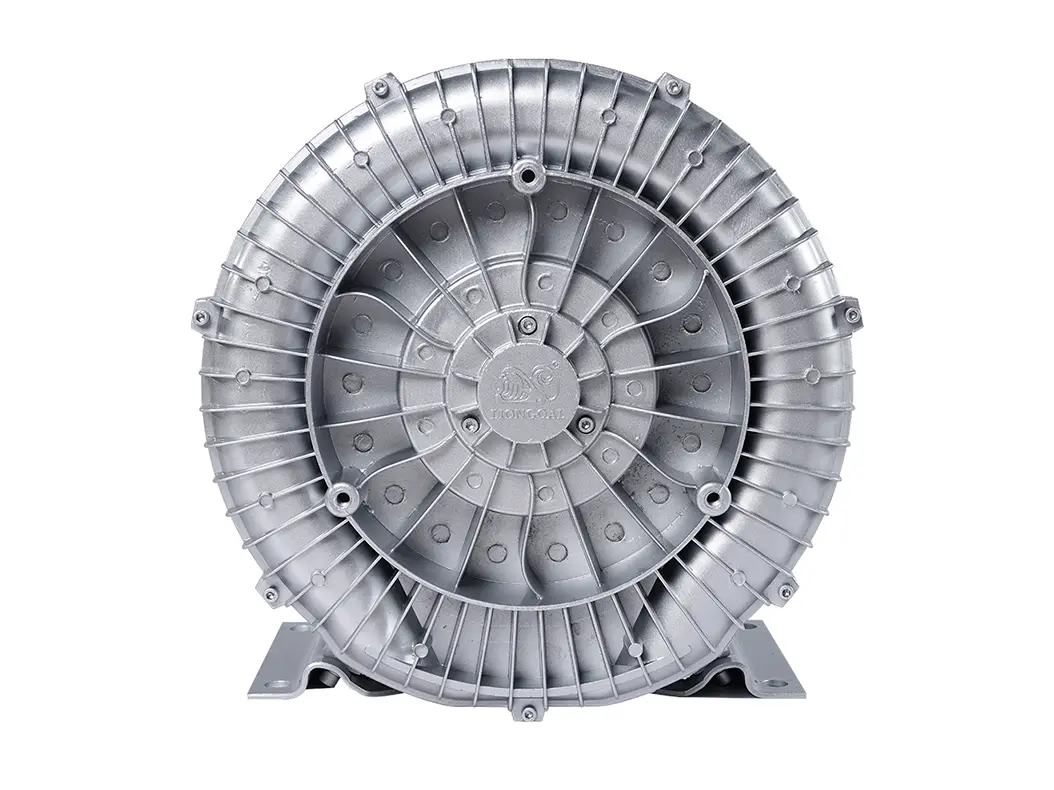

High Pressure Ring Blower-2.jpg

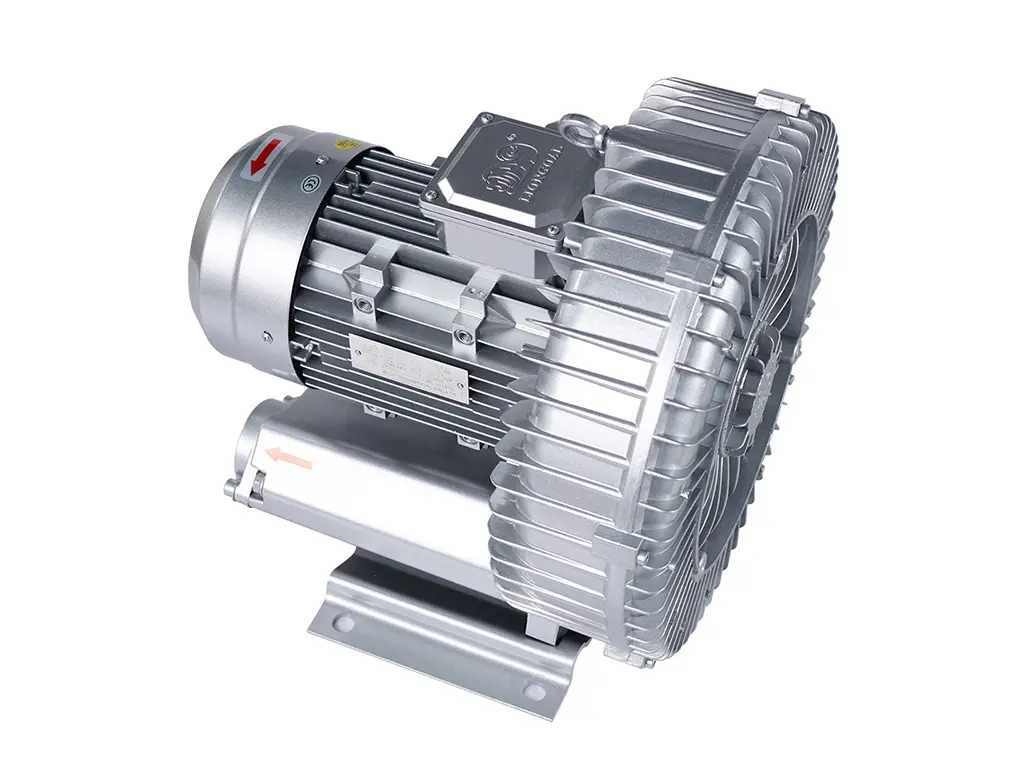

High Pressure Ring Blower-3.jpg

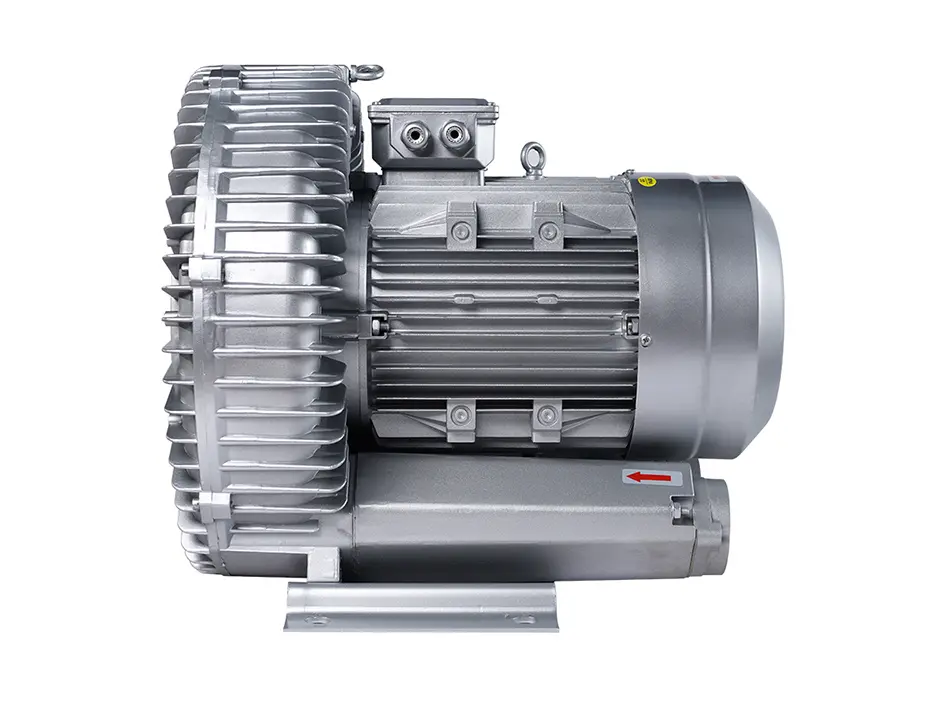

High Pressure Ring Blower-4.jpg

2LG610 Three Phase High Pressure Ring Blower for Vacuum Cleaner

It operates based on the principle of centrifugal force. The impeller, driven by a motor, rotates at a high speed. As the impeller spins, air is drawn in through the inlet and forced into the ring - shaped casing. The unique design of the casing and the impeller causes the air to be compressed as it moves along the side channels, resulting in a high - pressure air output at the outlet.

    Contact us

    Product introduction

    The high pressure ring blower is a sophisticated piece of equipment designed to generate high  pressure airflow. It belongs to the category of blowers and is widely used in various industrial and commercial applications. It is widely used in pneumatic conveying of materials, such as powders and granules. In the automotive industry, they are employed in paint - spraying processes to provide the necessary air pressure. They are also used in the food processing industry for tasks like product cooling and air - knife applications. In the medical field, they are utilized in some respiratory equipment. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China and we have established partnerships with 5000+ clients from all over the world.

    ring blower-11

    Features

    1. Two-year warranty, no need for daily maintenance

    2. Long term durability, 24-hour continuous work

    3. Balanced design of dual bearings

    4. 100% copper coil of motor, aluminum alloy shell

    5. Low noise, quiet operation,

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Wide application

    Parameters

    Product Name

    High Pressure Ring Blower

    Model

    2LG610 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    1.6/2.1/2.2/2.55/3/3.45Kw

    Voltage

    380V

    Max Airflow

    265/315m³/h

    Max Vacuum

    -170/-180/-235/-245/-280/-260mbar

    Max Compressor

    180/190/220/230/280/270mbar

    Caliber

    G2inch

    Power Source

    Electric

    Details

    High Pressure Ring Blower-6

    Application

    It is widely used in pneumatic conveying of materials, such as powders and granules. In the automotive industry, they are employed in paint - spraying processes to provide the necessary air pressure. They are also used in the food processing industry for tasks like product cooling and air - knife applications. In the medical field, they are utilized in some respiratory equipment.

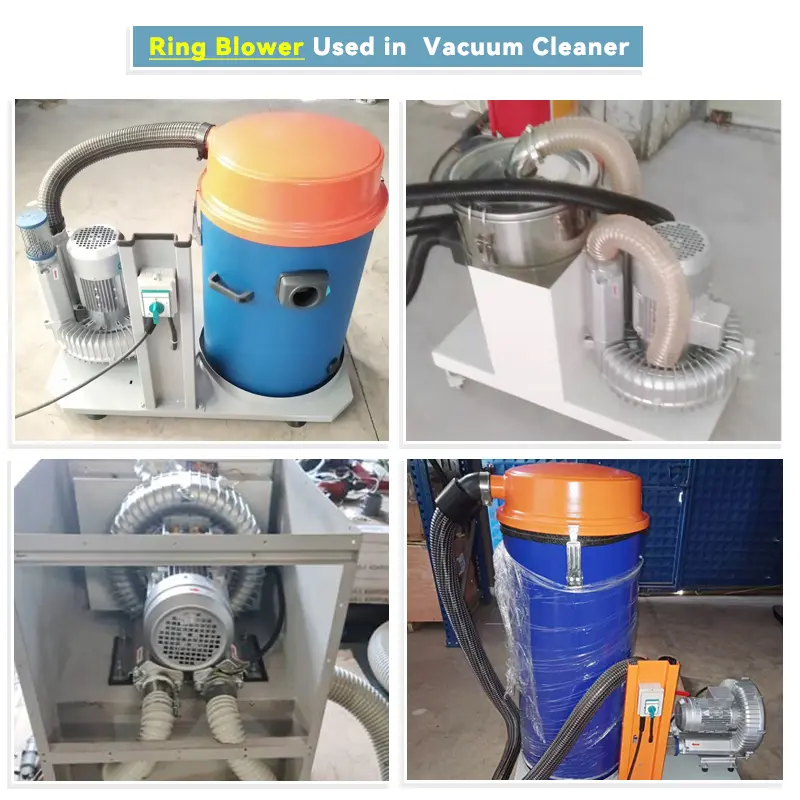

    High Pressure Ring Blower-7

    Customers Show

    High Pressure Ring Blower-8
    ring blower-8
    ring blower-9
    High Pressure Ring Blower-11
