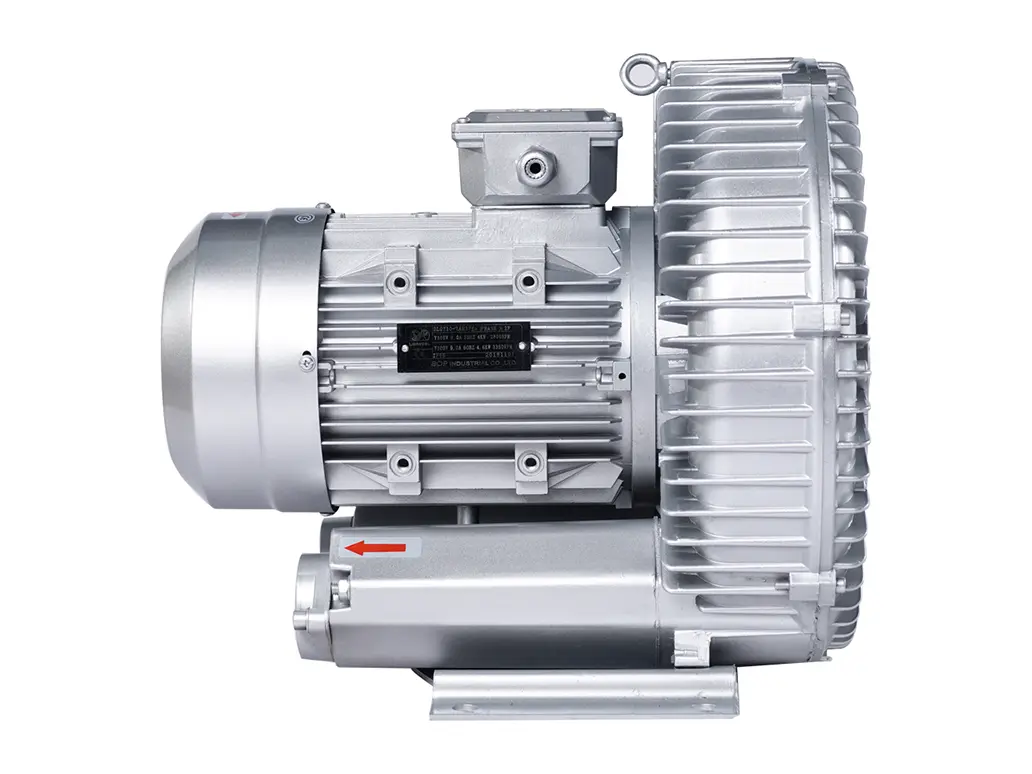

2LG710 380V High Airflow Side Channel Blower for Material Machine
Product introduction

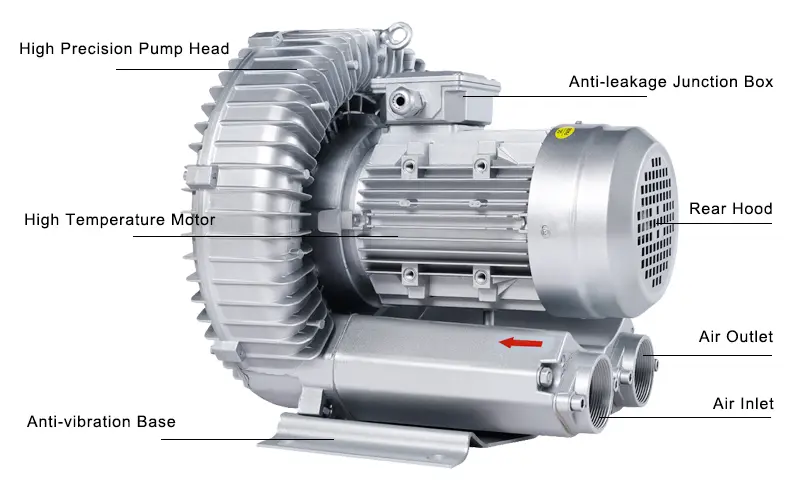

A side channel blower, also known as a regenerative blower or ring blower, is a type of air blower that operates based on the principle of regenerative compression. The blower has a simple and compact structure, usually composed of a housing, impeller, motor, and bearings. The housing is designed to form a side channel, which is crucial for the air compression process. The impeller is precisely designed to ensure efficient air movement and compression. It is widely used in industrial production for ventilation and exhaust systems, such as in factories, workshops, and warehouses to maintain air circulation and a good working environment. Jiangxi Sop Industrial Co., Ltd. is professional side channel blower's supplier in China and we have established partnerships with 5000+ clients from all over the world. We can offer ODM & OEM services.
Features
1. Two-year warranty
2. Long service life, 24-hour continuous work
3. Balanced design of double bearings
4. Aluminum alloy shell, 100% copper coil of motor
5. Quiet operation, low noise
6. Oil free, impeller connected to the motor directly
7. Dual usage of blowing and suction
8. High Efficiency
Parameters
Product Name |
Side Channel Blower |
Model |
2LG710 Three Phase |
Structure |
Single Stage |
Frequency |
50/60Hz |
Rated Power |
2.2/2.55/3/3.45/4/4.6Kw |
Voltage |
380V |
Max Airflow |
318/376m³/h |
Max Vacuum |
-190/-260/-240/-290/-320mbar |
Max Compressor |
190/270/230/360/310mbar |
Caliber |
G2inch |
Power Source |
Electric |
Details
Application
Customers Show
