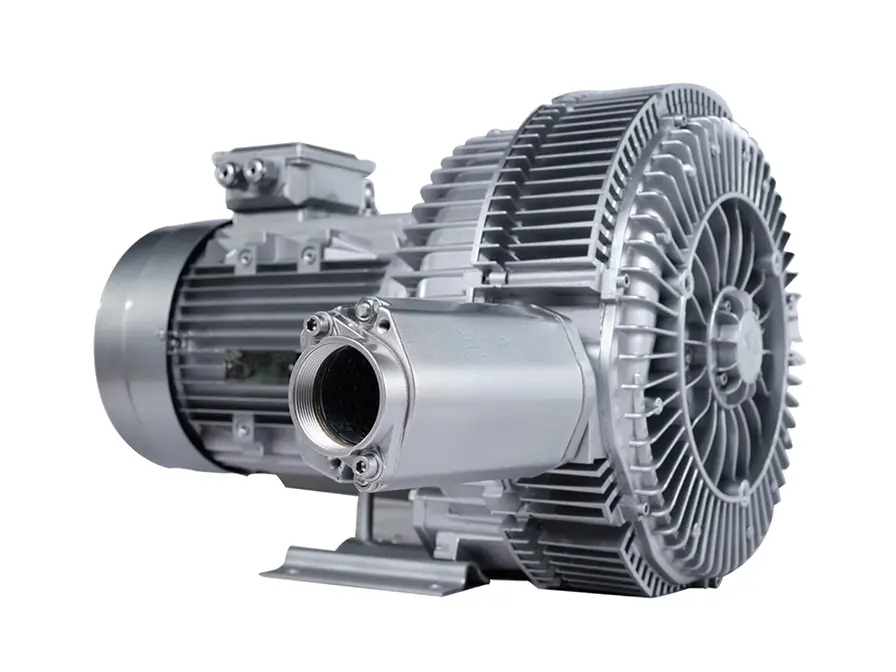

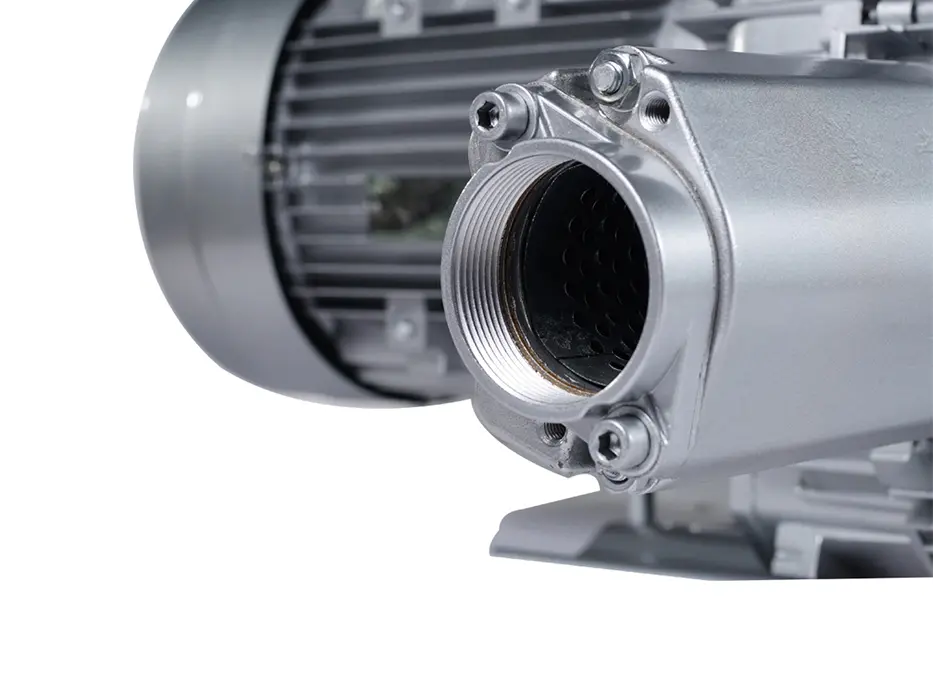

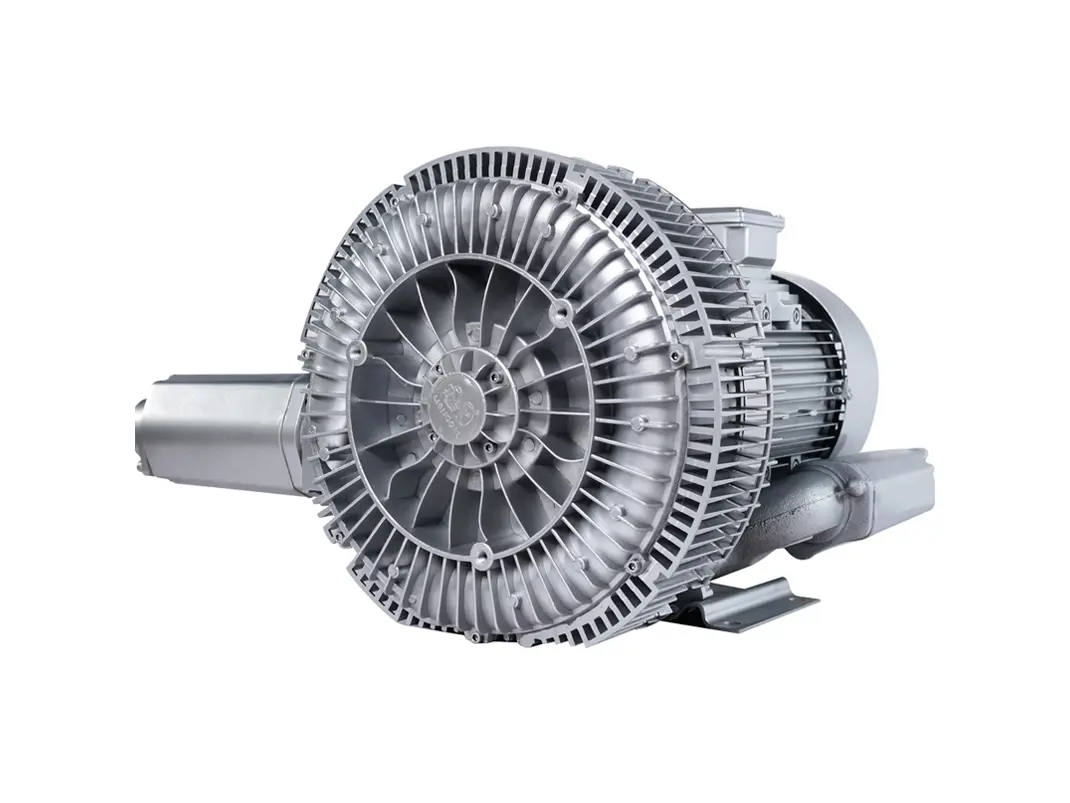

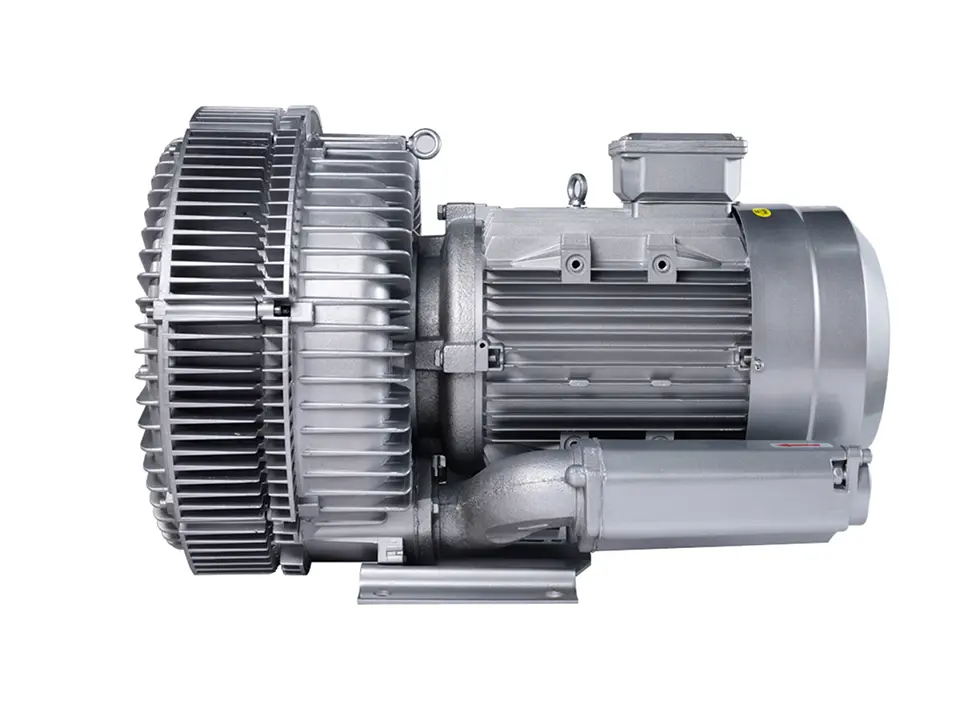

2LG720 Double Stage Side Channel Air Blower for Large Particle Conveyor

A side channel air blower, also known as a regenerative blower or ring blower, is a type of blower. It consists of a housing, an impeller, and bearings. The housing is designed to guide the air flow, and the impeller is the key component that imparts energy to the air. The bearings support the rotation of the impeller.

    Contact us

    Product introduction

    Side channel air blower operates based on the principle of centrifugal force. The impeller rotates at a high speed, causing the air to be drawn in axially and then accelerated radially. The air then enters the side channel, where it undergoes a series of compression and expansion, resulting in a pressure increase. It has several advantages, including high efficiency, low noise, and stable operation. It can provide a relatively high pressure rise with a small volume flow rate, making it suitable for many specific applications. Additionally, it requires less maintenance due to its simple structure. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China and we have established partnerships with 5000+ clients from all over the world. We can offer ODM & OEM and 7 days fast shipping services.

    ring blower-11

    Features

    1. Two year warranty

    2. 24-hour continuous work

    3. Balanced design of double bearings

    4. Aluminum alloy shell, 100% copper coil of motor

    5. Quiet operation

    6. Oil free

    7. Dual usage of blowing and suction

    8. High Efficiency

    Parameters

    Product Name

    Side Channel Air Blower

    Model

    2LG720 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    2.2/2.55/3/3.45/4.3/4.8/5.5/6.3/7.5/8.6Kw

    Voltage

    380V

    Max Airflow

    320/385m³/h

    Max Vacuum

    -200/-170/-280/-230/-320/-360/-350/-440mbar

    Max Compressor

    190/150/260/200/380/320/500/570/660mbar

    Caliber

    G2inch

    Power Source

    Electric

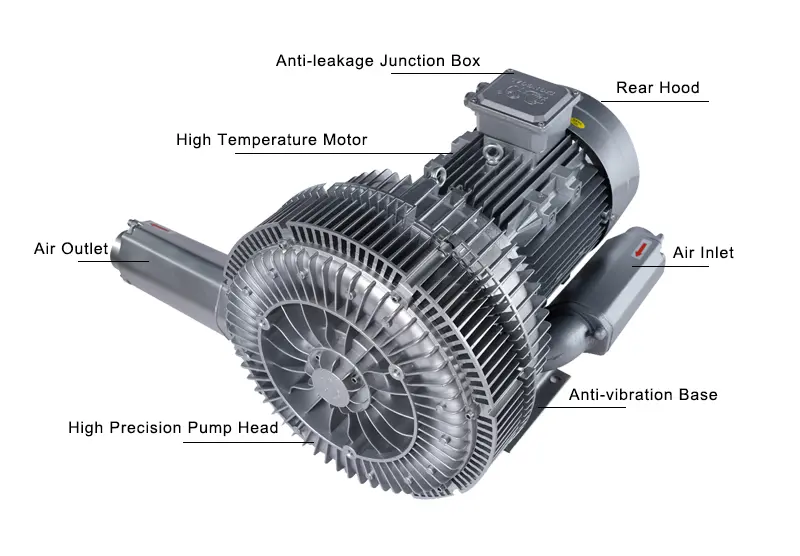

    Details

    side channel air blower-6

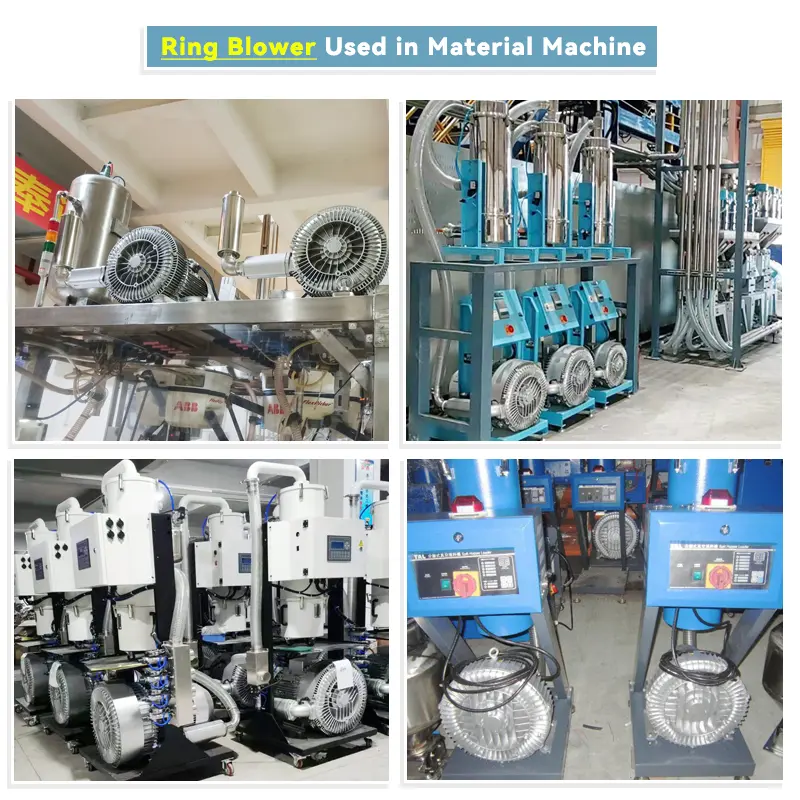

    Application

    Side channel air blowers are widely used in various industries. In the pneumatic conveying system, they are used to transport granular materials. In the wastewater treatment industry, they provide aeration for the treatment process. They are also used in the food processing industry for tasks such as product cooling and air cushioning.
    side channel blower-7

    Customers Show

    side channel blower-8
    High Pressure Ring Blower-11
    ring blower-8
    ring blower-9
