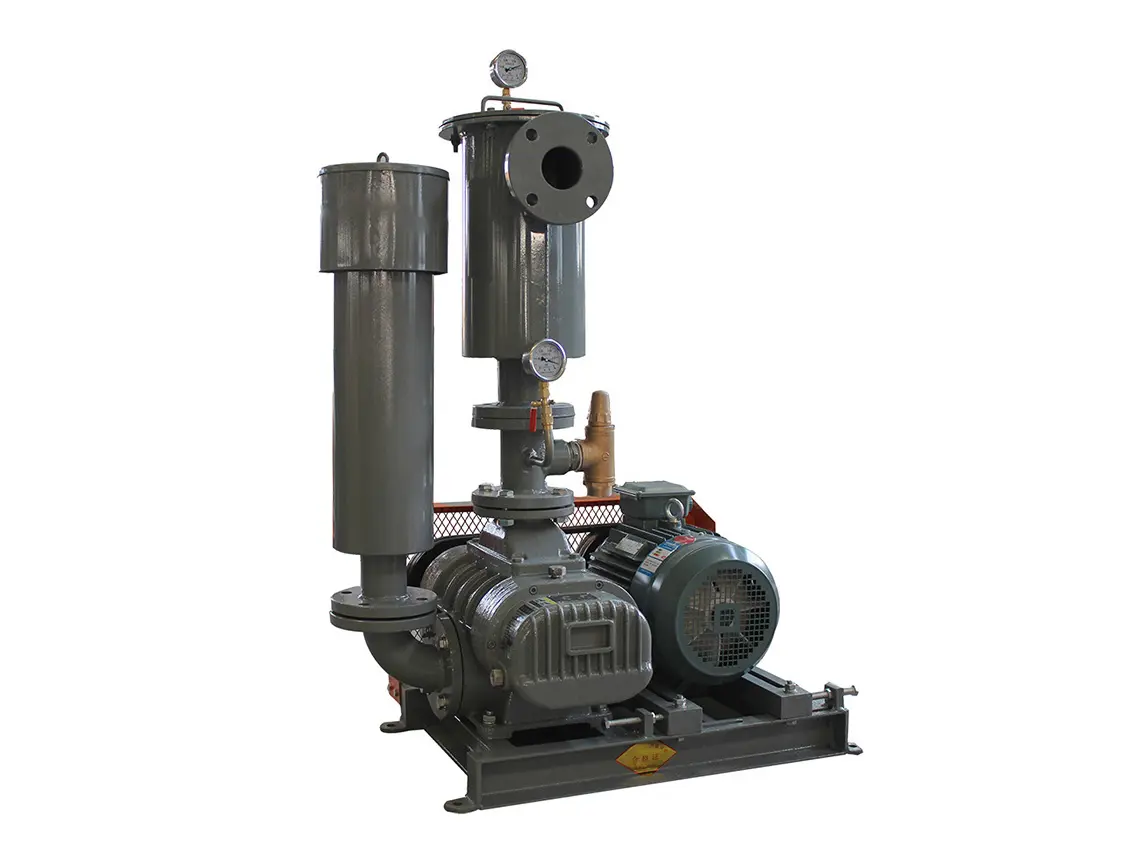

Roots air blower-1.jpg

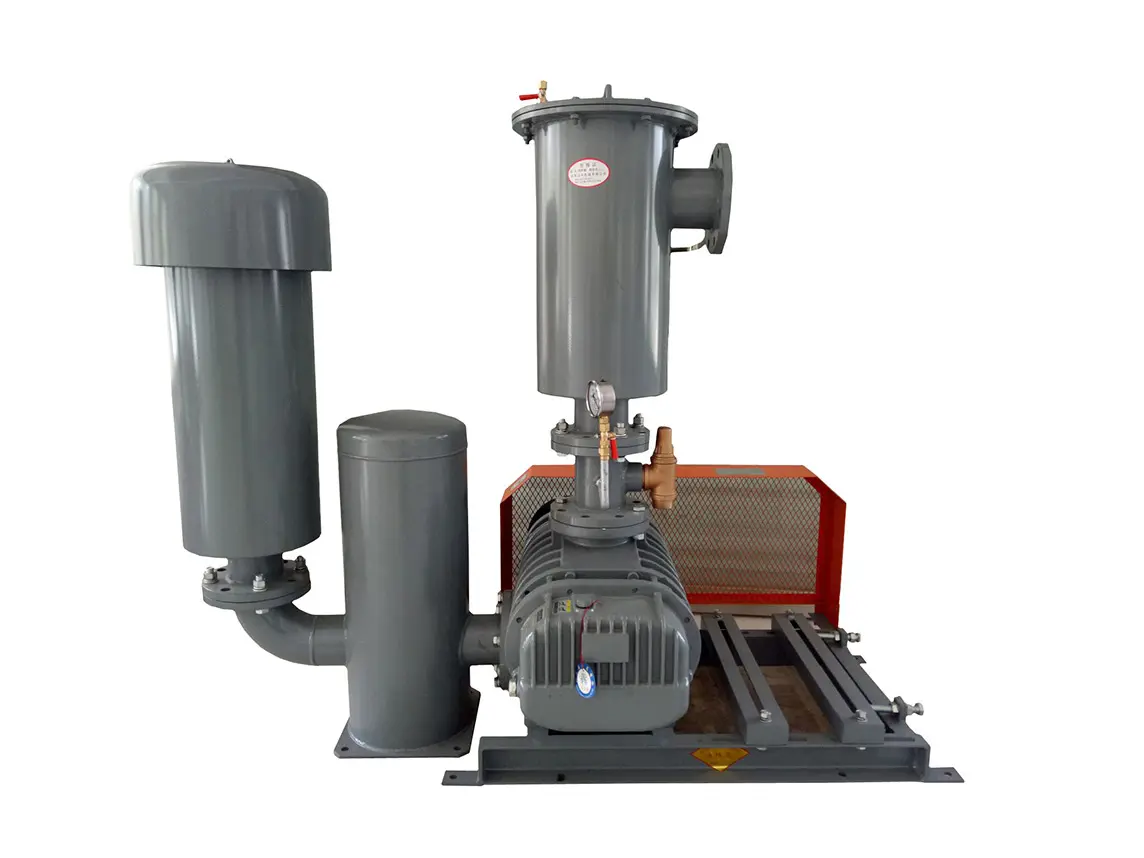

Roots air blower-2.jpg

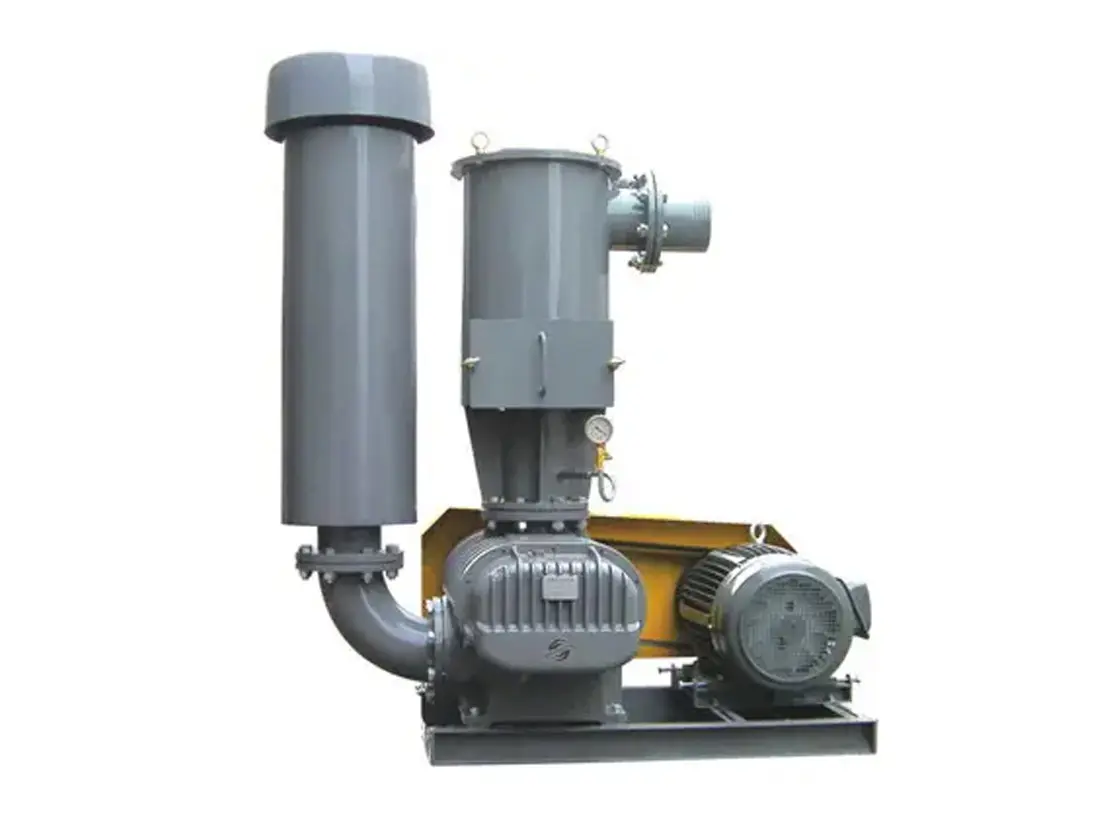

Roots air blower-3.jpg

SOPSR-V Stable Operation Roots Air Blower for Warehouse Ventilation

Similar to the general roots blower, the roots air blower operates based on the positive - displacement principle. It consists of two rotors with unique lobe shapes that rotate in opposite directions within a sealed casing. As the rotors turn, they trap air at the inlet and transport it to the outlet without significant internal compression, creating a continuous flow of air.

    Contact us

    Product introduction

    A roots air blower is a specific type of Roots blower designed for handling air. It is widely used in various industrial and environmental applications. The main components include a casing made of high - quality cast iron or steel to ensure durability and airtightness. Inside the casing, there are two precisely machined rotors connected to a pair of synchronous gears. The gears ensure that the rotors rotate in synchronization, maintaining a consistent gap between them to prevent air leakage. The blower is usually equipped with inlet and outlet ports for air intake and discharge, and may also have additional components like bearings and seals to ensure smooth operation. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer OEM & ODM services. We have established partnerships with more than 5000 customers.

    Roots blower-5

    Features

    1. Simple structure

    2. Large air volume

    3. Low noise

    4. High efficiency

    5. Stable operation

    6. Easy to maintain

    Parameters

    Product Name

    Roots Air Blower

    Model

    SOPSR-V

    Caliber

    50-300mm

    Airflow

    1-138m³/min

    Pressure

    -9.8~-46.6kpa

    Power Source

    Electric

    Details

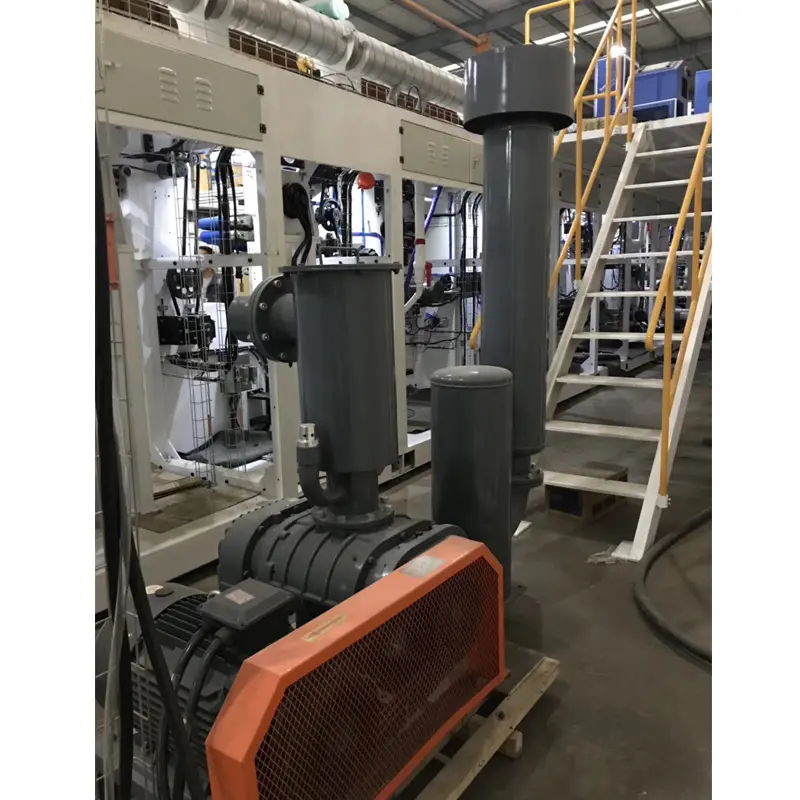

    Roots air blower-6

    Application

    Roots air blowers are commonly used in wastewater treatment plants for aeration, providing the necessary oxygen for the growth of microorganisms that break down organic matter. They are also used in pneumatic conveying systems to transport powdered or granular materials, such as in the food, chemical, and mining industries. In addition, they find applications in industrial processes that require a continuous supply of low - pressure air, like in some coating and drying operations.

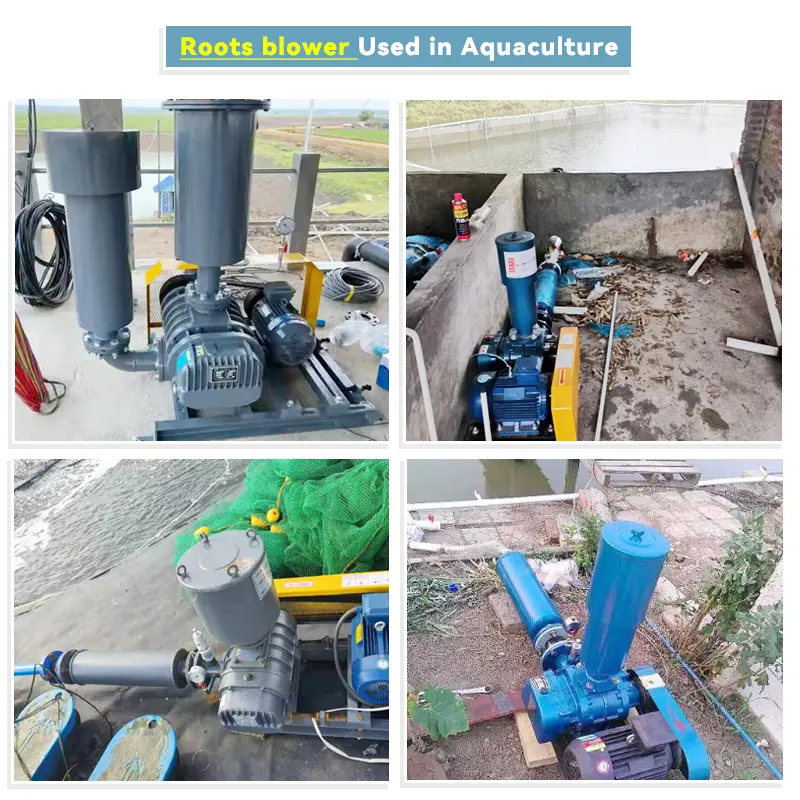

    Roots air blower-7

    Customers Show

    ring blower-7
    Ring air blower-11
    Regenerative blower-8
    ring blower-10
