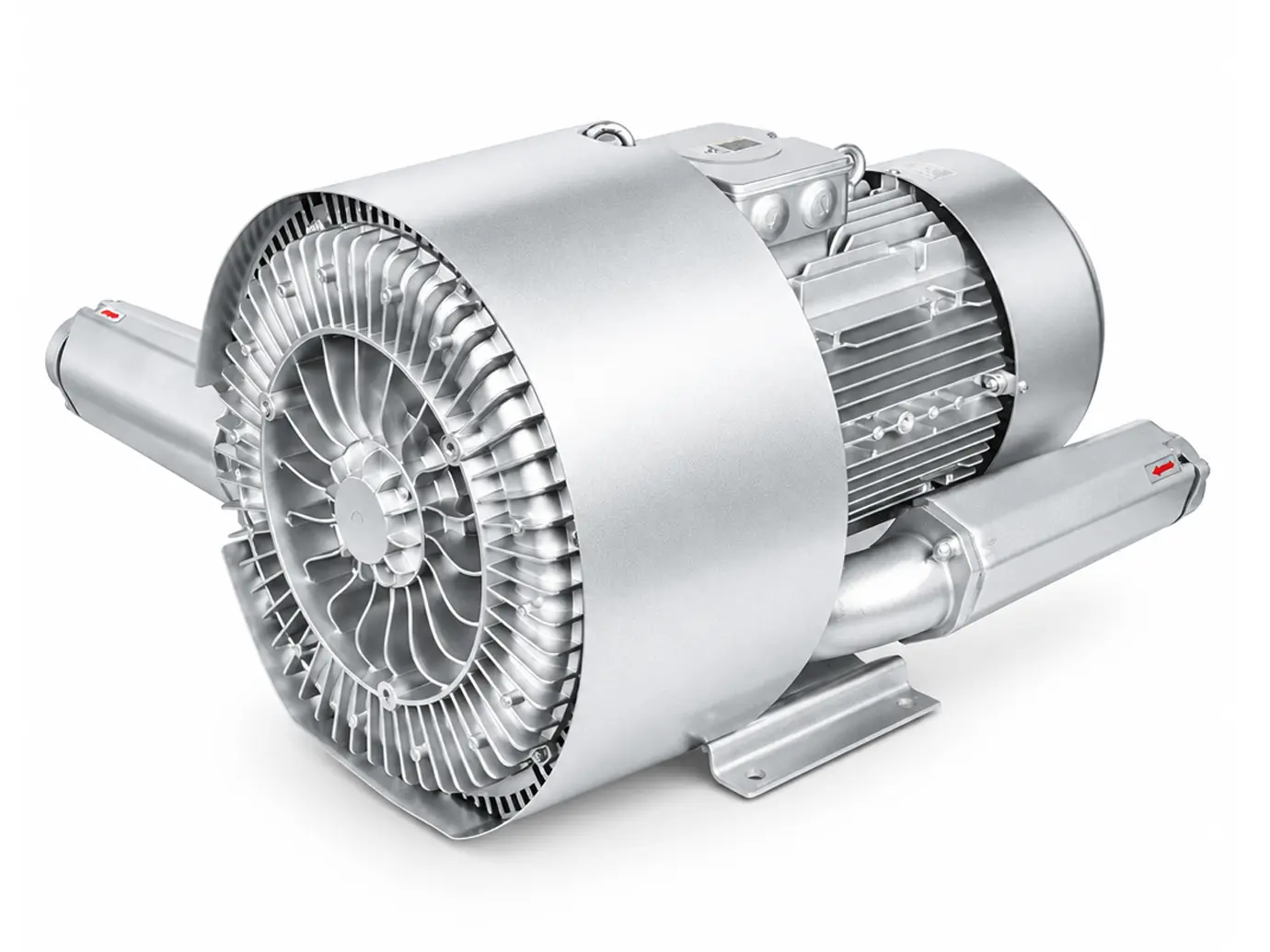

Side Blower-1.jpg

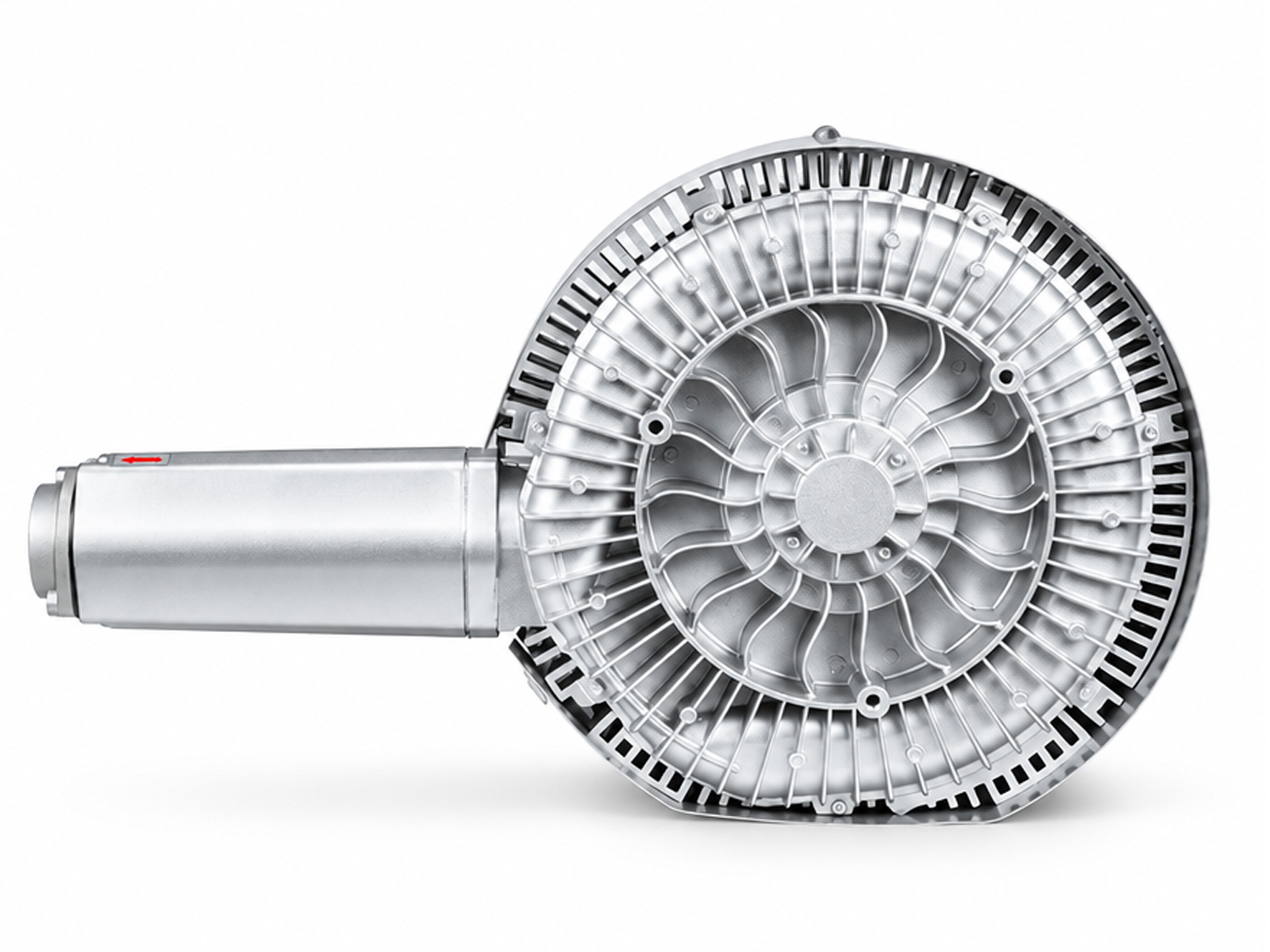

Side Blower-2.jpg

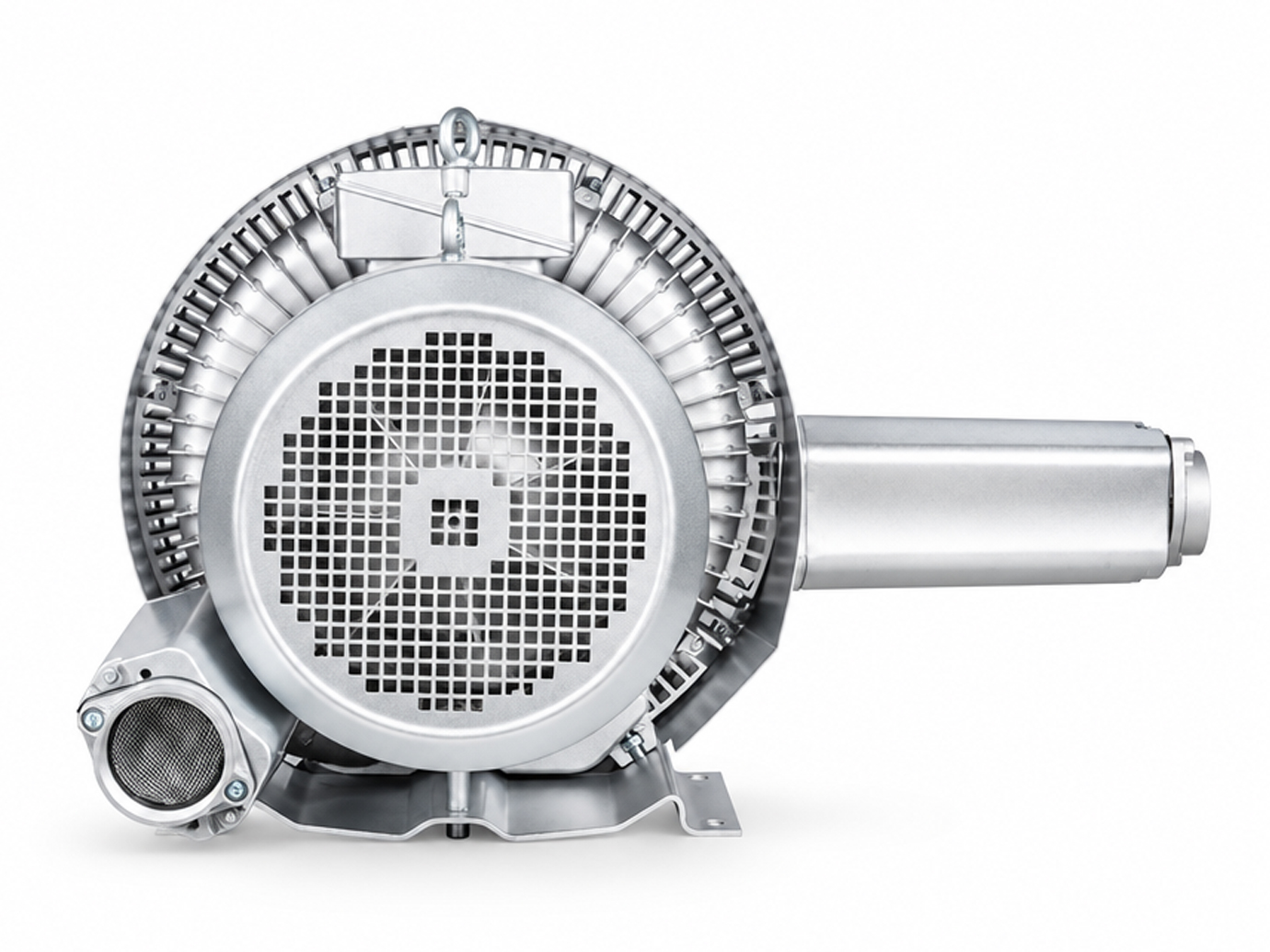

Side Blower-3.jpg

2LG920 High Airflow Double Stage Side Channel Blower for Printing Machinery

This double stage side channel blower is engineered with two series-connected side channel impellers mounted on the same high-torque motor shaft, transferring kinetic energy to air twice in sequence to achieve far higher differential pressure and vacuum performance than single-stage models of the same size. Its full die-cast aluminum housing and precision-balanced impellers eliminate internal friction during operation, delivering 100% oil-free, contamination-free airflow that meets strict industrial clean air requirements. The integrated double-layer sealing structure effectively prevents air leakage, ensuring stable pressure output even under long-duration full-load working conditions.

    Contact us

    Product introduction

    Designed for high-demand industrial continuous operation, this double stage side channel blower features a compact, integrated unit structure that removes the need for extra connecting pipes between the two compression stages, greatly reducing installation space and airflow loss. Equipped with dual inlet and outlet mufflers and a dynamically calibrated base, it operates at a remarkably low noise level with minimal vibration, no need for additional shock-absorbing measures in most regular installation scenarios. Its maintenance-free main structure only requires occasional bearing lubrication, supportin non-stop reliable operation. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China and we have established partnerships with 5000+ clients from all over the world. We can offer ODM & OEM and 7 days fast shipping services.

    ring blower-11

    Features

    1. Two year warranty

    2. 24-hour continuous work

    3. Balanced design of double bearings

    4. Aluminum alloy shell, 100% copper coil of motor

    5. Quiet operation

    6. Oil free

    7. Dual usage of blowing and suction

    8. High Efficiency

    Parameters

    Product Name

    Double Stage Side Channel Blower

    Model

    2LG920 Three Phase

    Structure

    Double Stage

    Frequency

    50/60Hz

    Rated Power

    12.5-29Kw

    Voltage

    380V

    Max Airflow

    1110/1310m³/h

    Max Vacuum

    -300/-220/-410/-340/-440mbar

    Max Compressor

    200-590mbar

    Caliber

    G4inch

    Power Source

    Electric

    Details

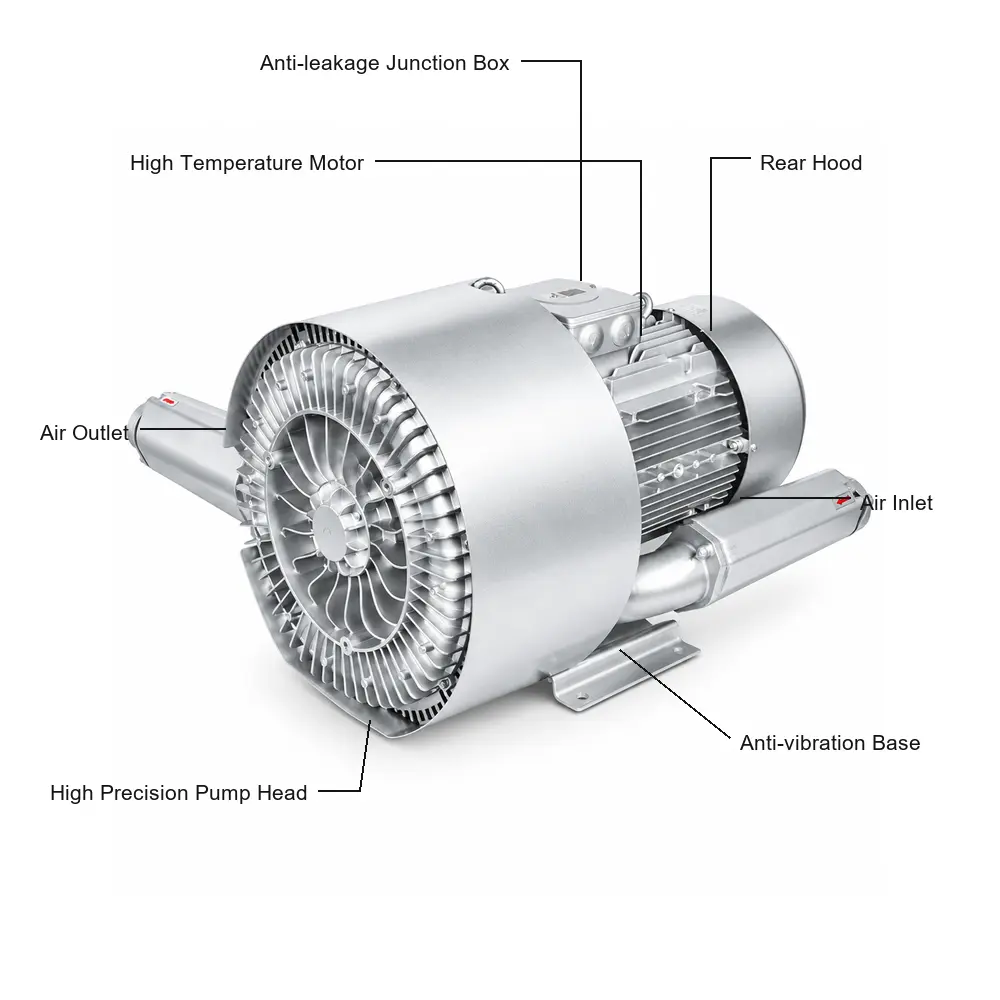

    Side Blower-6

    Application

    This double stage side channel blower is perfectly suited for scenarios that demand higher pressure or vacuum than ordinary single-stage blowers can provide. It delivers stable performance for deep water wastewater aeration, high-lift pneumatic conveying of granular and powdery materials, and high-vacuum suction for industrial CNC adsorption systems. It also serves as a reliable oil-free air source for industrial drying lines, vacuum packaging machines, aquaculture deep-water oxygen supply, and high-efficiency industrial dust extraction systems, making it a go-to workhorse for heavy-duty industrial applications.

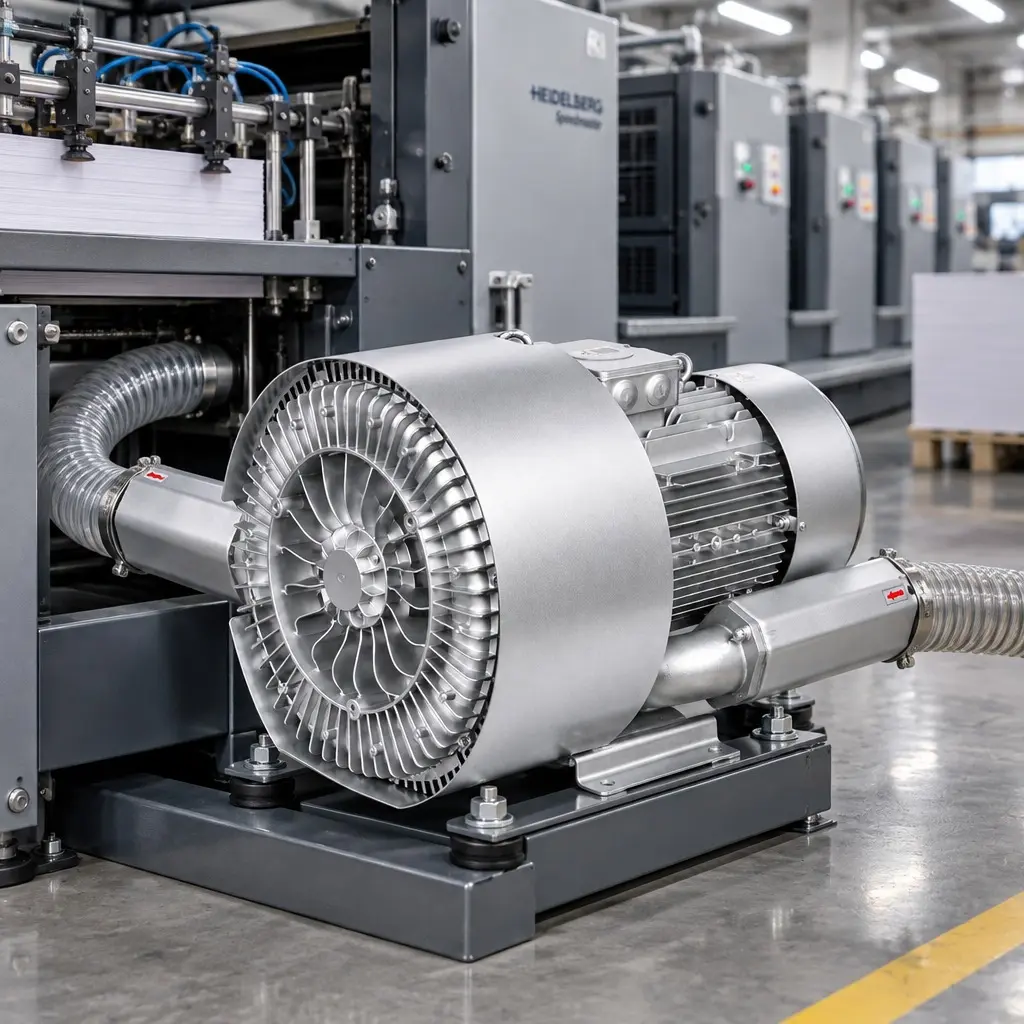

    Side Blower-7
