2LG530 Three Phase 380V Regenerative Blower for Vacuum Adsorption Equipment

This regenerative blower, also known as a side channel blower, is engineered with a rugged cast aluminum housing and a dynamically balanced impeller, driven by a high-efficiency, totally enclosed fan-cooled motor. It generates clean, oil-free airflow through a multi-stage air regeneration process, delivering consistent medium pressure and vacuum performance with no internal lubrication required, ensuring the output air stays completely uncontaminated. Its precision-machined internal flow path minimizes turbulence and energy loss, making it far more power-efficient than traditional positive displacement blowers under the same working conditions.

    Contact us

    Product introduction

    Designed for long-term, low-fuss industrial operation, this regenerative blower features a nearly maintenance-free structure with only sealed bearings as the regular service point, supporting continuous running without major upkeep. The unit is engineered with integrated noise reduction structures and optional muffler assemblies, keeping operating sound at a low, non-intrusive level that fits well into quiet workshop environments. Its compact, unitary base design requires no complex pre-installation preparation, allowing operators to put it into service quickly after connecting the power supply and air ducts. Jiangxi Sop Industrial Co., Ltd. is professional blower's supplier in China with more than 20 years production and sales experience, we offer 2 years quality assurance for our blowers. We have established partnerships with 5000+ clients from all over the world.

    ring blower-11

    Features

    1. Two-year warranty, no need for daily maintenance

    2. Long term durability, 24-hour continuous work

    3. Balanced design of dual bearings

    4. 100% copper coil of motor, aluminum alloy shell

    5. Low noise, quiet operation,

    6. Oil free, impeller connected to the motor directly

    7. Dual usage of blowing and suction

    8. Wide application

    Parameters

    Product Name

    Regenerative Blower

    Model

    2LG530 Three Phase

    Structure

    Single Stage

    Frequency

    50/60Hz

    Rated Power

    0.85/0.95/1.3/1.5/1.6/2.1/2.2/2.55Kw

    Voltage

    380V

    Max Airflow

    270/330m³/h

    Max Vacuum

    -40/-120/-90/-160/-220/-260mbar

    Max Compressor

    40/110/80/150/230/280mbar

    Caliber

    G2inch

    Power Source

    Electric

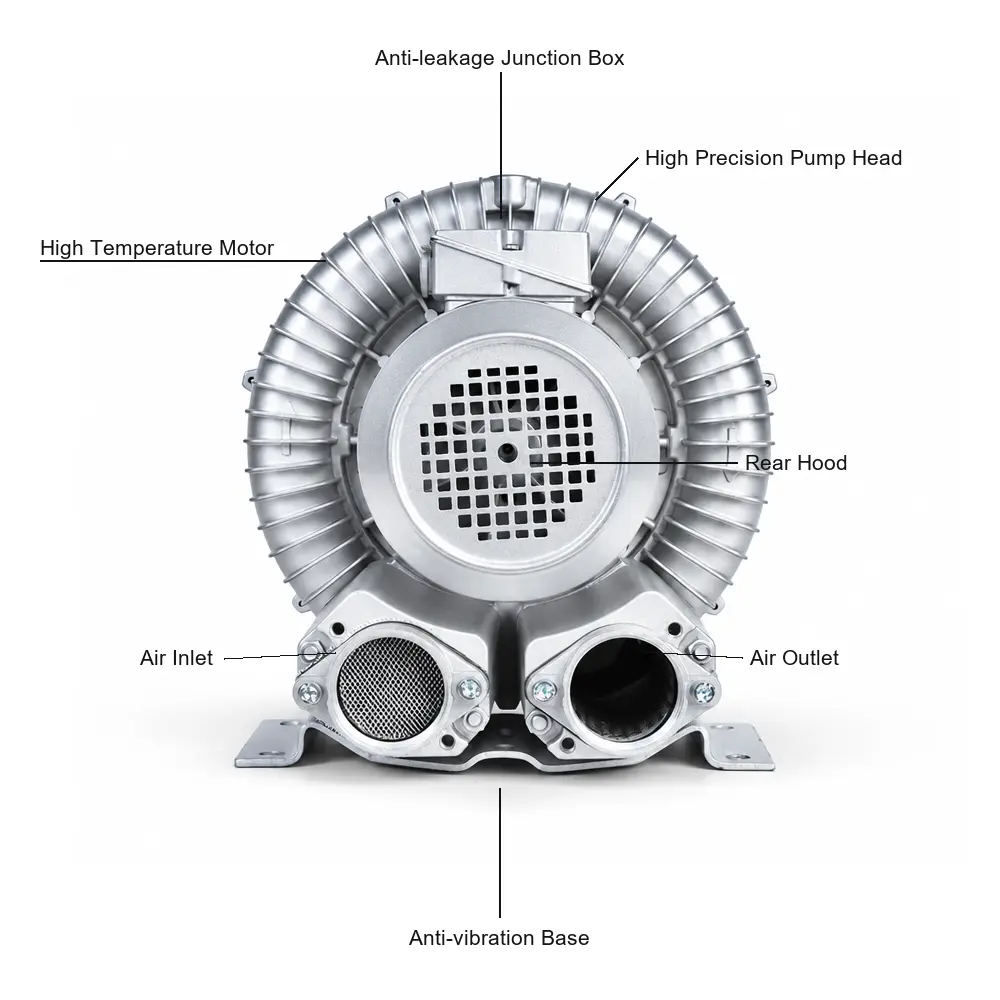

    Details

    Regenerative Blower Vacuum-6

    Application

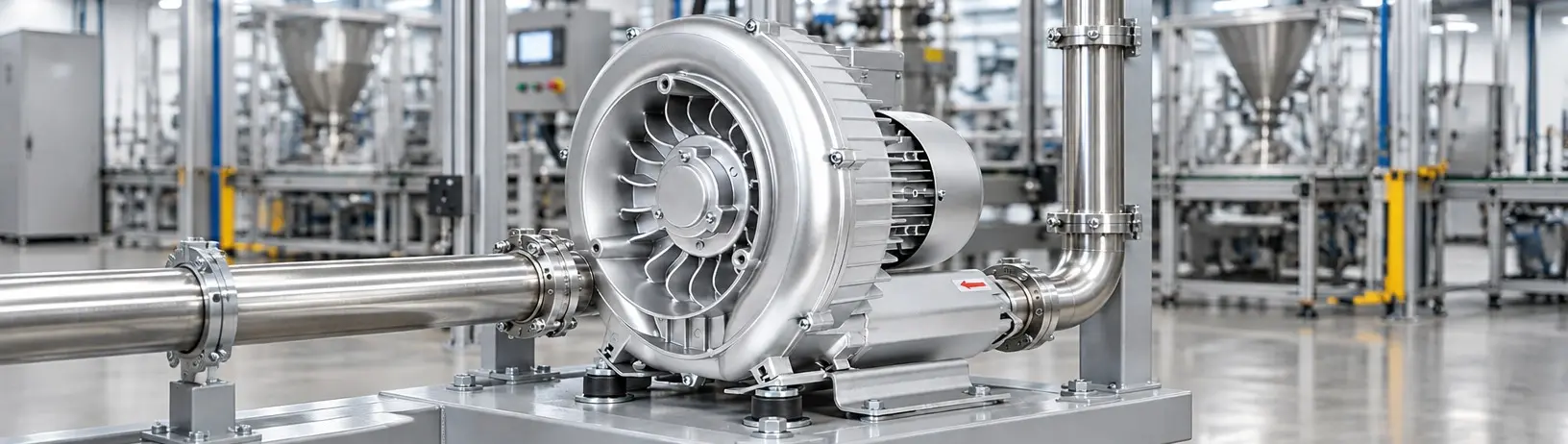

    This regenerative blower fits a wide spectrum of industrial and commercial use cases. It performs reliably for sewage aeration, pneumatic powder conveying, vacuum holding for CNC tables, and air knife drying on production lines. It also serves as a stable air source for vacuum packaging, pond and aquaculture oxygenation, industrial dust collection, gas sampling systems, and air cushion conveying for light materials, making it a versatile workhorse across manufacturing, environmental protection and food processing industries.

    Regenerative Blower Vacuum-18

    Customers Show

    ring blower-7
    ring blower-8
    ring blower-9
    Ring air blower-11
