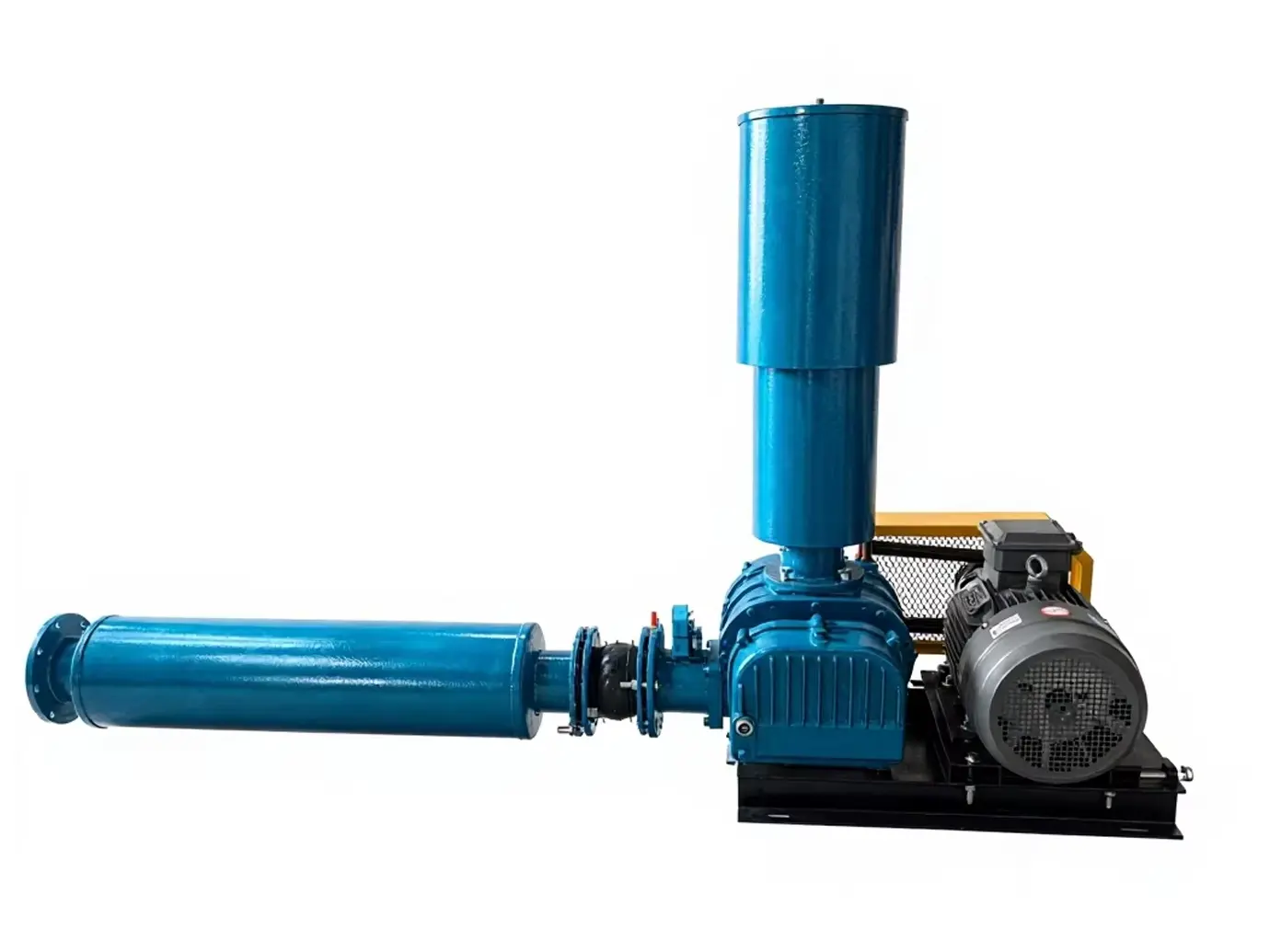

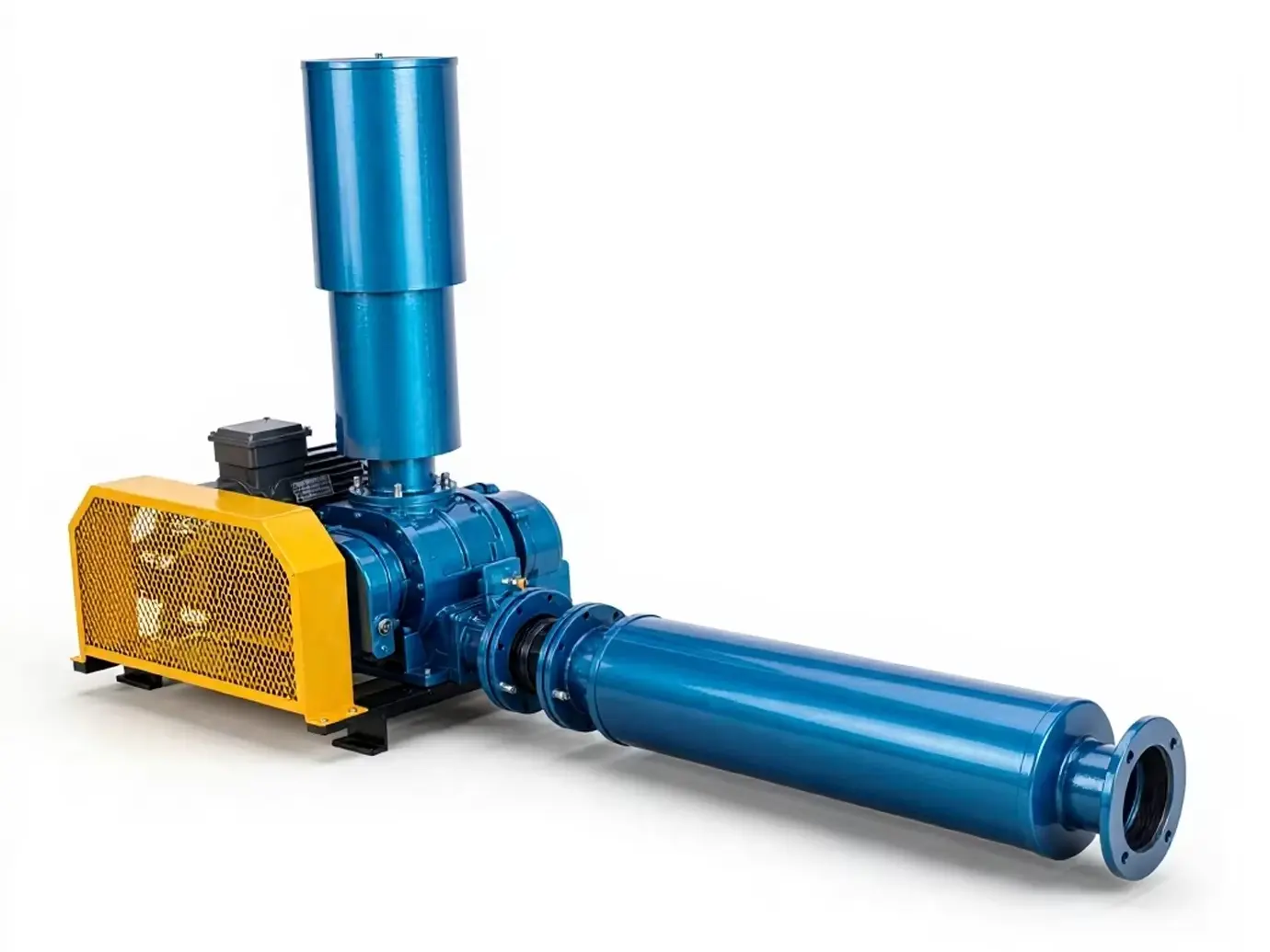

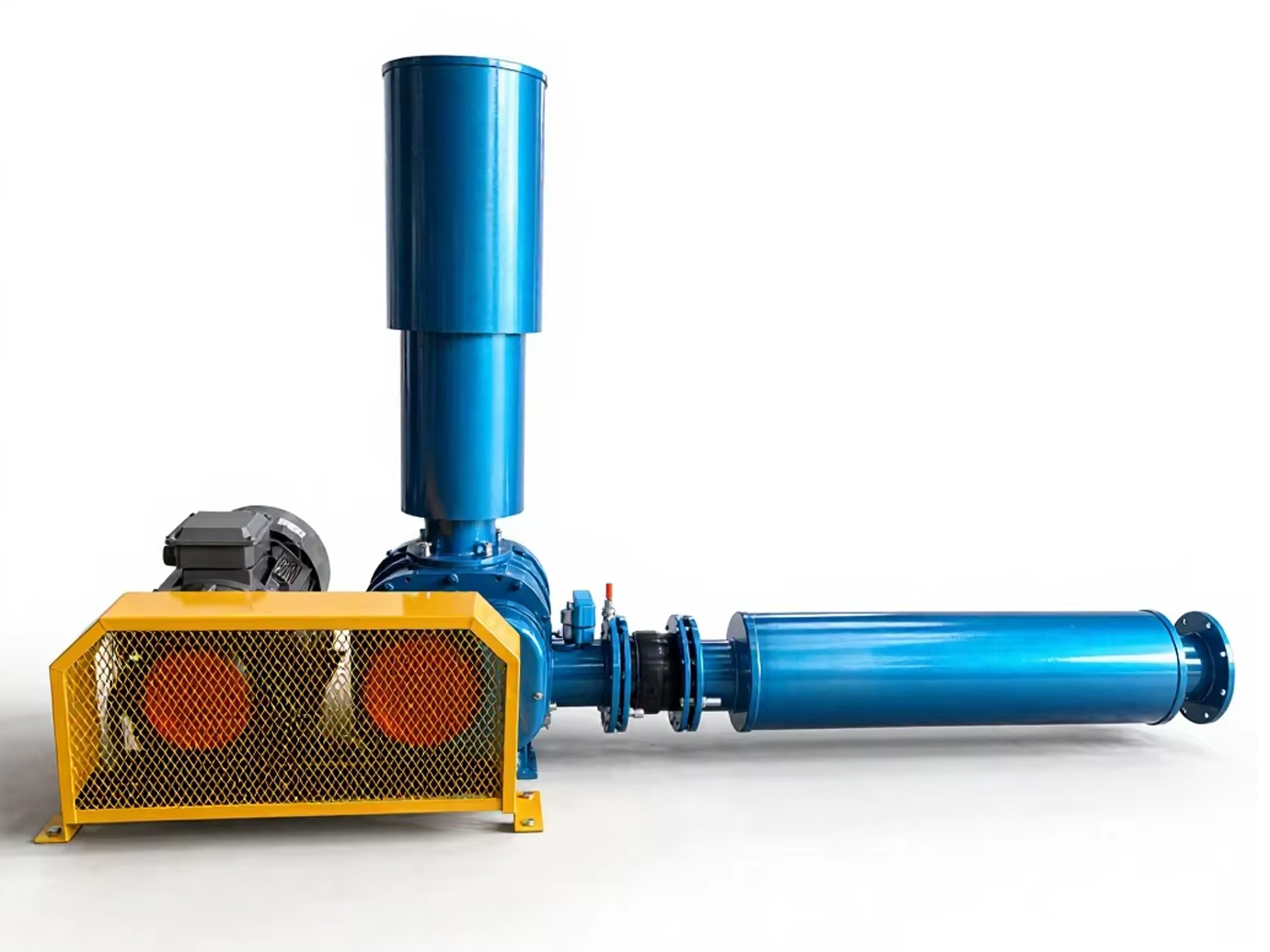

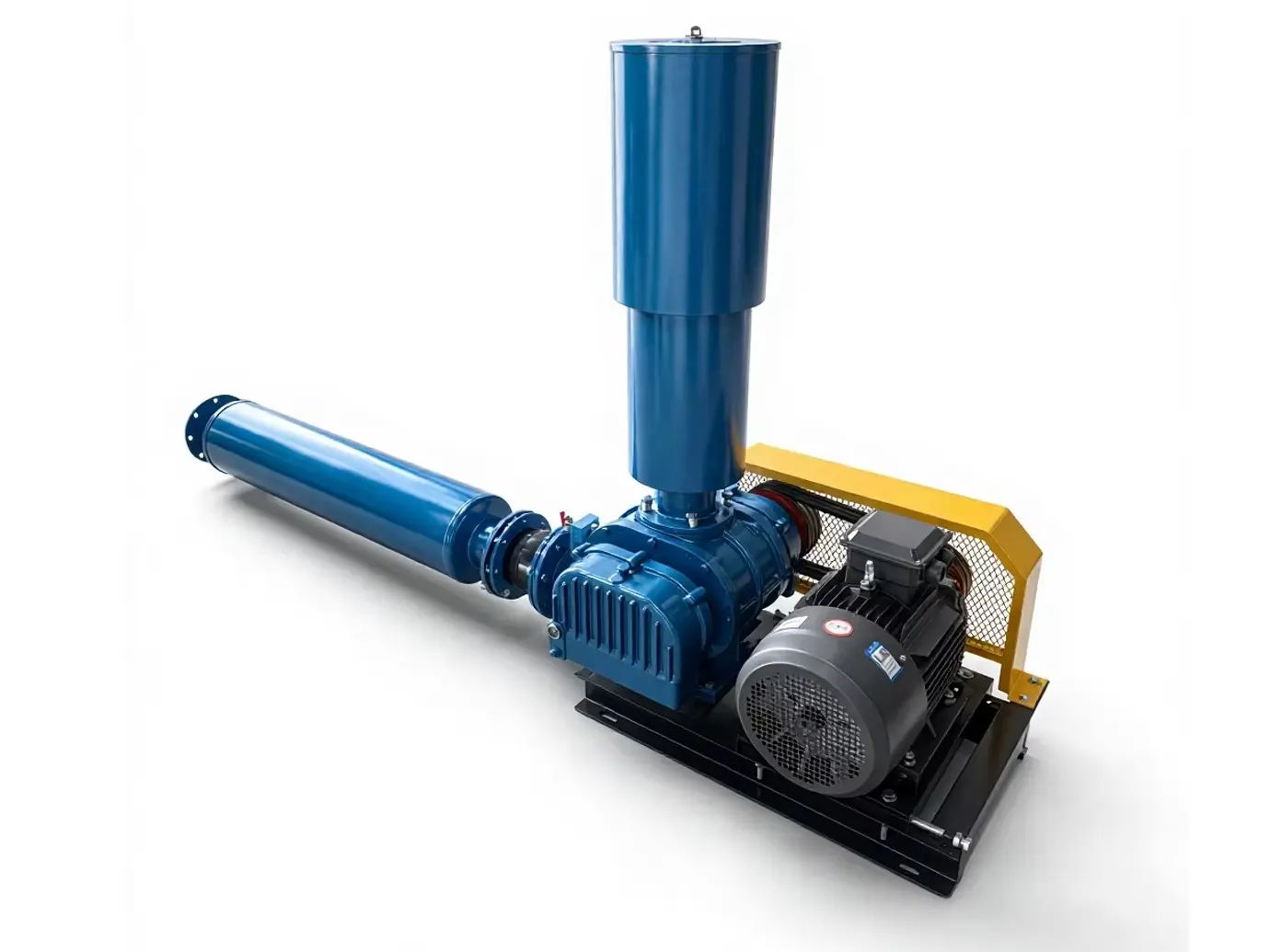

SOPLG-125 Energy Saving 380V Tri Lobe Roots Blower for Biogas Conveying

A ‌Tri Lobe Roots Blower‌ is a high-efficiency, oil-free positive displacement rotary air/gas handling device, an optimized modern iteration of the classic Roots blower that replaces the traditional two-lobe rotor design with two parallel, precisely contoured three-lobe rotors. Built for continuous, heavy-duty industrial operation, it maintains the core volumetric air delivery logic of conventional Roots blowers while delivering far smoother airflow, drastically reduced pressure pulsation, lower operating noise and vibration, and higher long-term reliability, making it the dominant choice for most low-to-medium pressure industrial air supply scenarios today.

    Contact us

    Product introduction

    Its working principle follows a strict constant-volume, no-internal-compression mechanism: two three-lobe rotors housed inside a rigid, precision-machined casing are driven by external, high-accuracy timing gears that keep the two rotors rotating in perfect opposite synchronization, maintaining a tiny, consistent operating clearance between the lobes, as well as between the rotors and the casing inner walls and end plates, so no metal-to-metal contact ever occurs during operation. As each lobe sweeps past the inlet port, a fixed, completely sealed pocket of air or process gas is trapped between the rotor, casing wall and end face; the rotating rotor carries this trapped gas pocket around the full inner perimeter of the casing with zero change to its volume. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer OEM & ODM services. We have established partnerships with more than 5000 customers from all over the world.

    Roots blower-5

    Features

    1. Long service life

    2. Large air volume

    3. Low noise

    4. High efficiency

    5. Stable operation

    6. Energy saving

    Parameters

    Product Name

    Tri Lobe Roots Blower

    Model

    SOPLG-125

    Rated Voltage

    380V

    Rated Power

    7.5kW, 11kW, 15kW, 18.5kW

    Phase

    Three Phase

    Power Source

    Electric

    Details

    Tri Lobe Roots Blower-6

    Application

    Tri Lobe Roots Blowers serve an extremely broad range of industrial and municipal applications that demand consistent, contamination-free large-volume airflow. They are the standard aeration equipment for municipal and industrial wastewater treatment plants, delivering stable oxygen supply to support activated sludge biological treatment processes. They also act as the core air source for positive-pressure pneumatic conveying systems, reliably transporting bulk granular materials including cement, grain, plastic pellets, fly ash and food-grade powders without oil contamination. Additional common use cases include large-scale commercial aquaculture pond oxygenation, biogas and inert gas pressurization and delivery in chemical facilities, flue gas desulfurization and ash handling in thermal power stations, industrial vacuum packaging and dust collection systems, and aeration support for urban river and lake ecological restoration projects.
    Three Lobe Roots Blower-92
