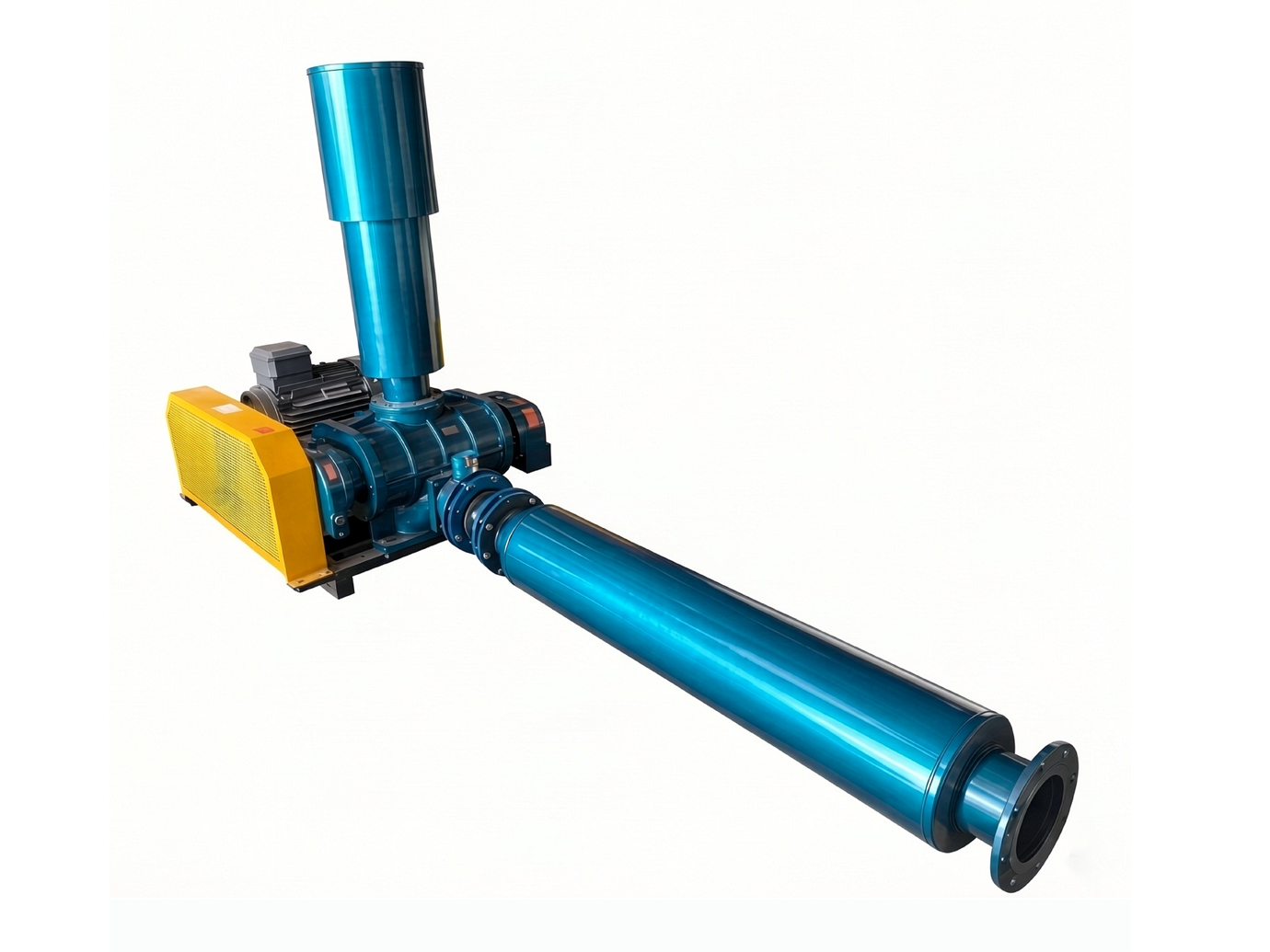

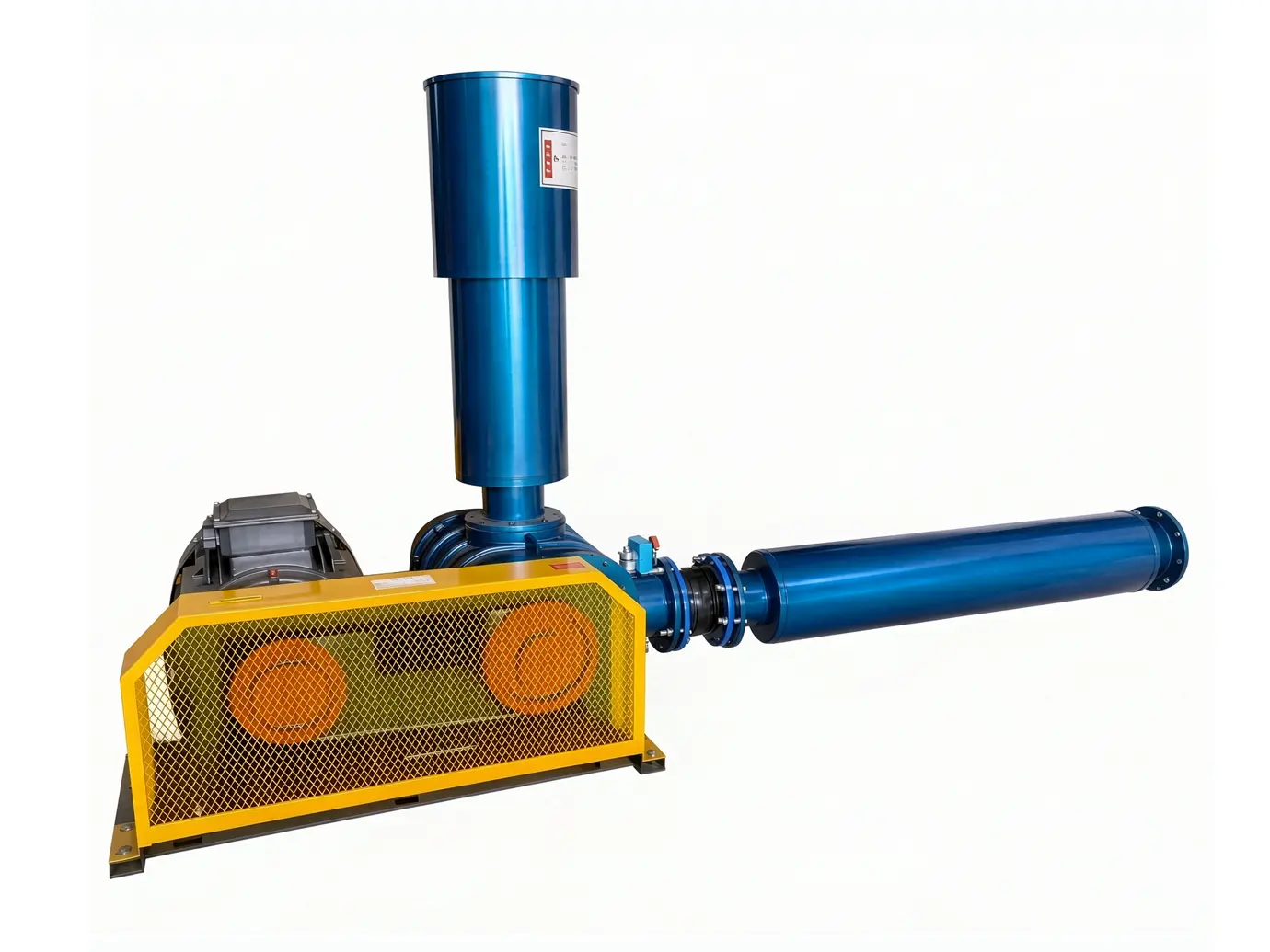

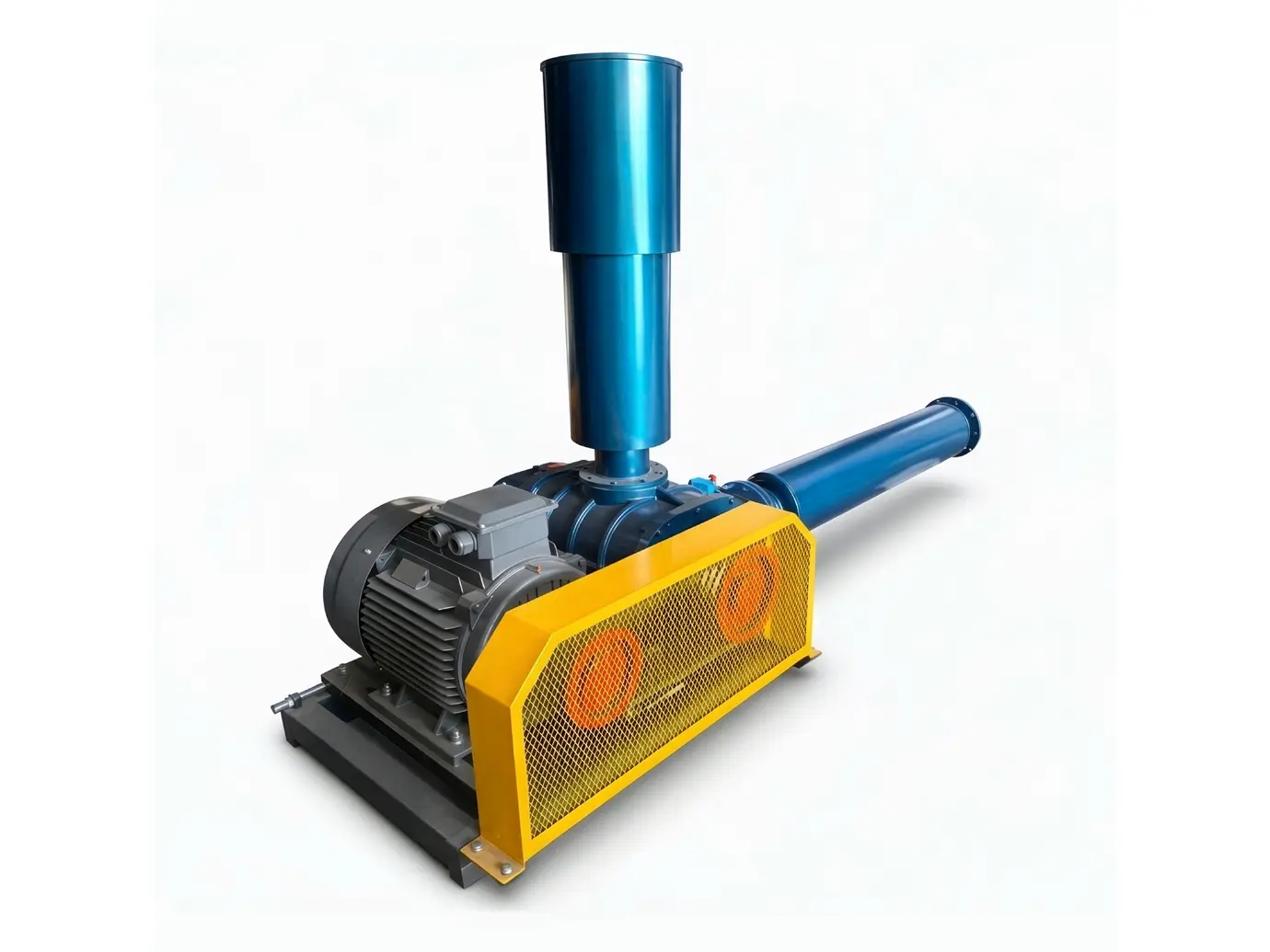

SOPLG-175 High Quality 18.5kW 22kW 30kW 37kW Big Roots Blower for Food Processing

A Big Roots Blower is a heavy-duty, large-flow positive displacement rotary lobe air-handling unit, purpose-built for high-capacity 24/7 industrial operations to deliver steady, 100% oil-free airflow at low to medium working pressures, far exceeding the flow capacity of standard small and medium-sized Roots blowers. It adopts a reinforced, rigid casing structure, oversized precision rotors and heavy-load bearing assemblies, to handle continuous high-volume air delivery without performance degradation.

    Contact us

    Product introduction

    Its working principle follows the classic no-internal-compression volumetric logic: two large, precision-synchronized counter-rotating tri-lobe rotors trap substantial fixed pockets of gas at the inlet, carry the sealed gas volume around the reinforced casing perimeter at constant volume, and build discharge pressure externally when the trapped air meets the system back-pressure at the discharge port. Strict non-contact clearances maintained by high-precision timing gears eliminate any metal-to-metal friction, ensuring zero oil contamination in the conveyed process gas. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer OEM & ODM services. We have established partnerships with more than 5000 customers from all over the world.

    Roots blower-5

    Features

    1. Long service life

    2. Large air volume

    3. Low noise

    4. High efficiency

    5. Stable operation

    6. Energy saving

    Parameters

    Product Name

    Big Roots Blower

    Model

    SOPLG-175

    Rated Voltage

    380V

    Rated Power

    18.5kW, 22kW, 30kW, 37kW

    Phase

    Three Phase

    Power Source

    Electric

    Details

    Tri Lobe Roots Blower-6

    Application

    These large-capacity blowers are widely applied in mega-scale municipal wastewater treatment plants for high-volume aeration, large-distance pneumatic conveying systems for cement, mining ores and bulk industrial powders, large metallurgical furnace air supply, thermal power plant flue gas desulfurization and ash handling systems, and large-scale industrial centralized vacuum processes.
    Three Lobe Roots Blower-92

    Customers Show

    ring blower-7
    Ring air blower-11
    Regenerative blower-8
    ring blower-10
