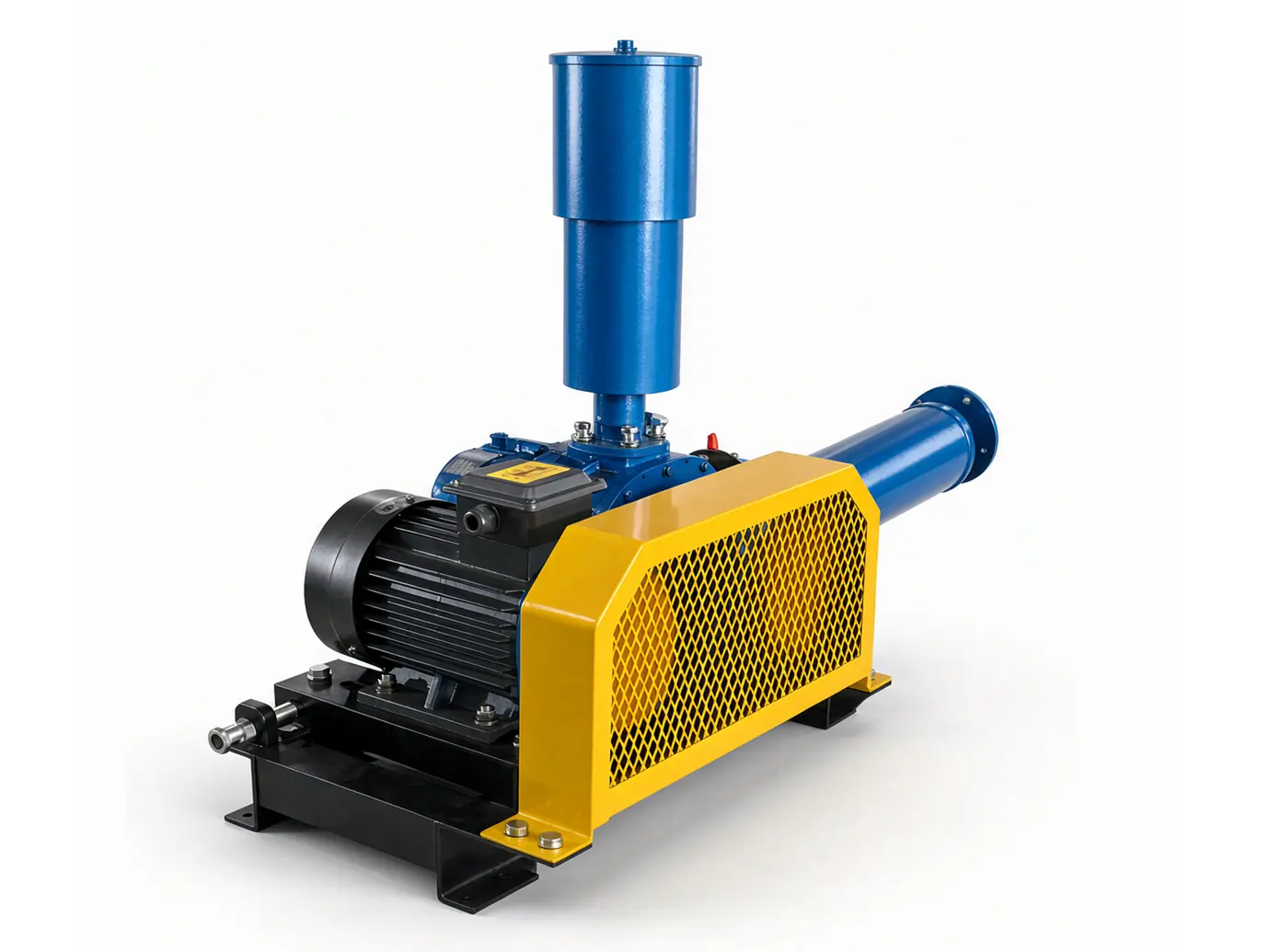

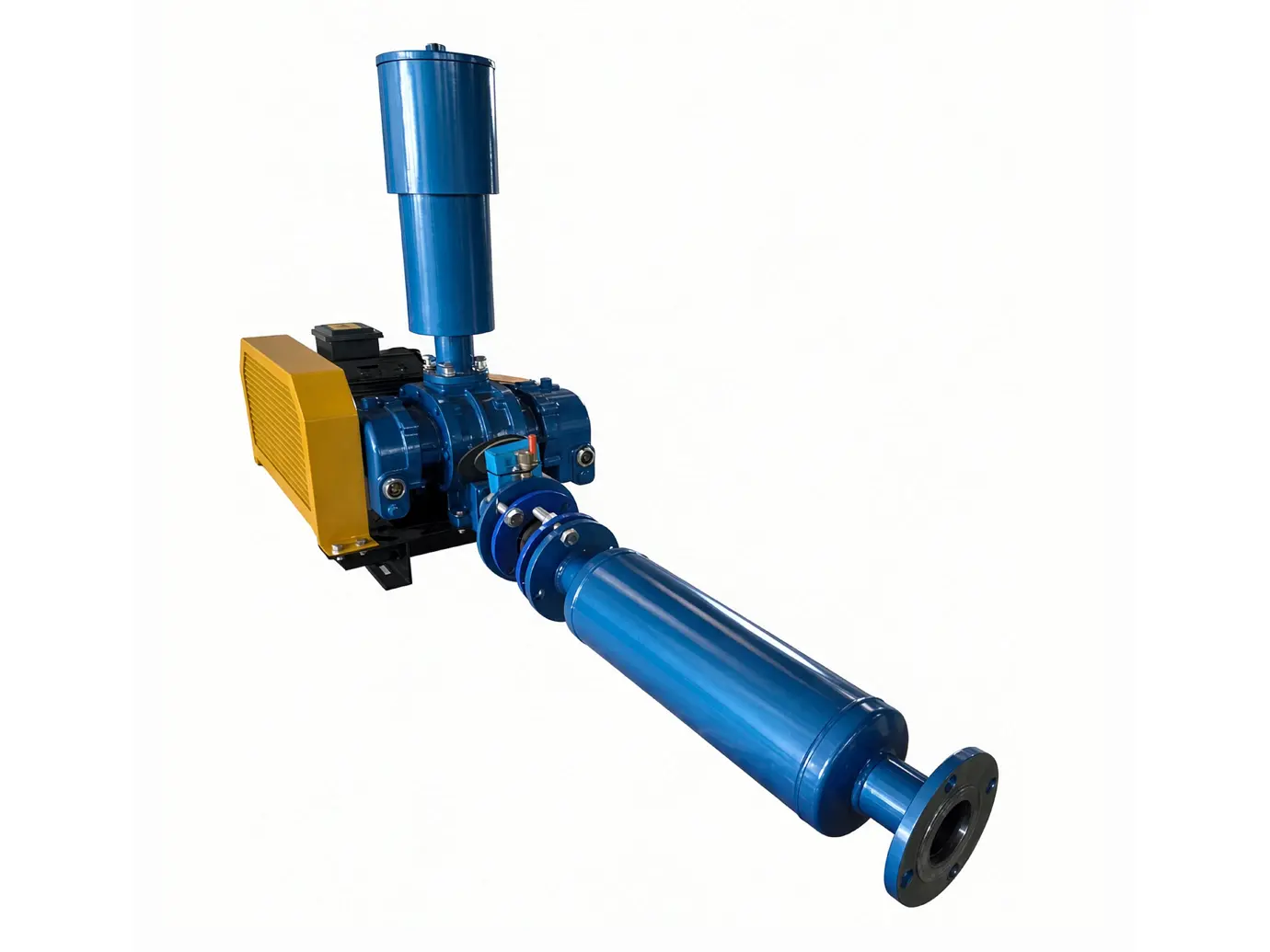

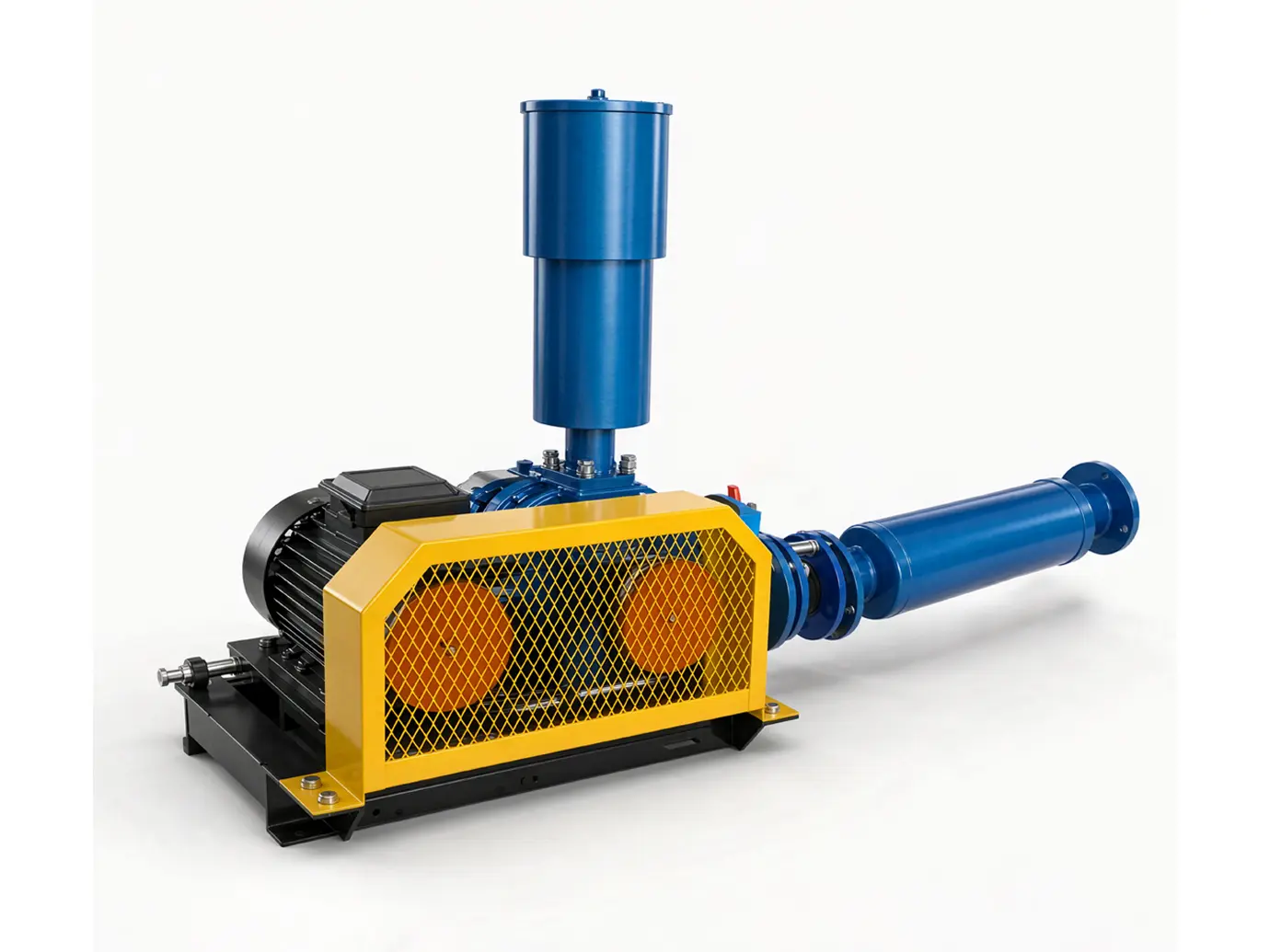

SOPLG-50 1.1kW 1.5kW 2.2kW 3kW Energy Saving Three Lobe Roots Blower for Fish Pond

The Three Lobe Roots Blower is a high-performance positive displacement rotary blower, widely recognized for its stable airflow delivery, low vibration and broad industrial applicability, evolved from the traditional two-lobe Roots blower design and optimized with three-lobe rotor geometry.

    Product introduction

    Its core structure consists of a precision-machined casing, a pair of symmetric three-lobe rotors, high-precision synchronizing gears, reinforced bearings and a rigid drive shaft. Driven by the synchronizing gears, the two three-lobe rotors rotate in opposite directions at a precisely controlled clearance, never making physical contact with each other or the inner wall of the casing. As the rotors turn, each lobe traps a fixed volume of clean gas at the inlet side, transports it completely along the casing wall to the discharge side without internal compression, and pushes it out to the connected pipeline system. This three-lobe design increases the gas suction and discharge frequency per full rotation compared to two-lobe models, which effectively reduces airflow pulsation, cuts operating vibration by over 30% and lowers running noise significantly. Jiangxi Sop Industrial Co., Ltd. is professional blower's manufacturer in China with more than 20 years production and sales experience, we can offer OEM & ODM services. We have established partnerships with more than 5000 customers from all over the world.

    Roots blower-5

    Features

    1. Long service life

    2. Large air volume

    3. Low noise

    4. High efficiency

    5. Stable operation

    6. Energy saving

    Parameters

    Product Name

    Three Lobe Roots Blower

    Model

    SOPLG-50

    Rated Voltage

    380V

    Max Airflow

    0.92-2; 0.75-2.48; 0.65-2.65; 1.09-1.96m³/min

    Phase

    Three Phase

    Power Source

    Electric

    Details

    Three Lobe Roots Blower-6

    Application

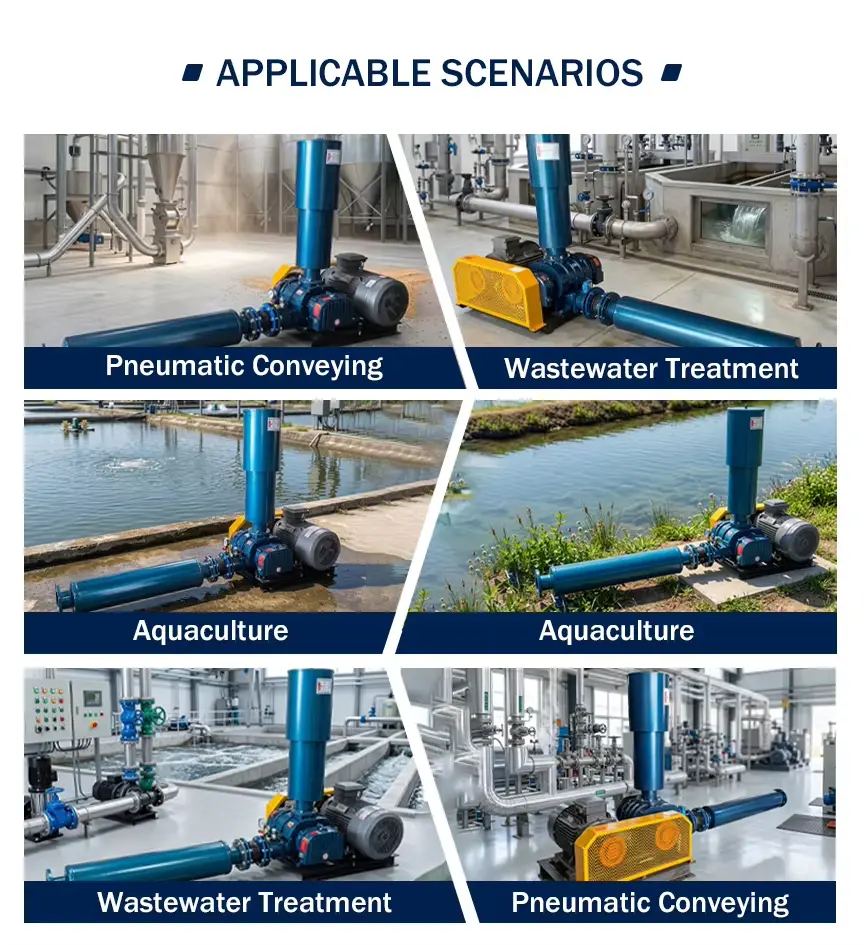

    It acts as the core aeration equipment in municipal and industrial wastewater treatment systems, delivering steady, large-volume air to aerobic biological tanks to support the decomposition of organic pollutants by aerobic microorganisms; it is extensively deployed in pneumatic conveying systems, transporting granular, powdery and bulk materials such as grains, cement, plastic pellets and mining ores in a fully enclosed pipeline to avoid material leakage and dust pollution; it provides stable air supply for flue gas desulfurization, denitrification and dust removal processes in thermal power plants and industrial environmental protection projects, ensuring continuous and uniform gas flow for efficient pollutant treatment; it is widely used in intensive aquaculture, delivering sufficient oxygen to large-scale farming ponds to raise dissolved oxygen levels and prevent aquatic organisms from hypoxia; it also plays a key role in biogas pressurization, vacuum packaging, industrial gas circulation and special gas delivery scenarios, and its ability to maintain a fixed airflow volume even under fluctuating system pressure makes it a trusted, cost-effective gas conveying solution for harsh, continuous-operation industrial environments.
    Three Lobe Roots Blower-7
